Shop TSUBAKI

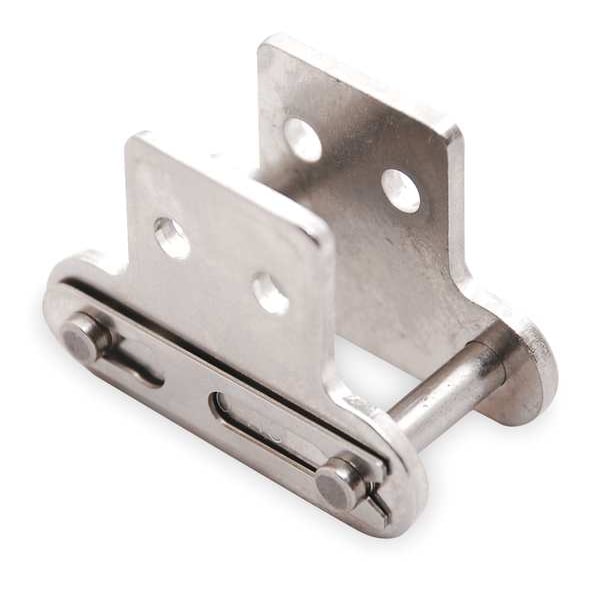

Connecting Roller Link, Double Pitch

  • Mfr # C2080HASSK2CL

  • Zoro # G1743953

product price:
$
67.99
/ea
Additional $25.00 delivery surcharge applies per item.
See details

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SK-2 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2080HASSK2CL
Zoro #
G1743953
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Pin Length (In.)
1.543
Outside Pin Dia.
0.312 in
Roller Dia. (In.)
0.625
Roller Link Plate Height (In.)
0.906
Inside Pin Dia.
0.312 in
Width Between Roller Link Plates
0.625 in
Pin Link Plate Thickness (In.)
0.906
Width Between Roller Link Plates (In.)
0.625
ANSI Chain Size
C2080HAS
Outside Pin Dia. (In.)
0.312
Pin Link Plate Thickness
0.906 in
Overall Width (In.)
1.543
Pin Length
1.543 in
Length (In.)
2.000
Roller Link Plate Height
0.906 in
Extended Pin Diameter
0.312 in
Roller Diameter
5/8 in
Plate Height
0.906 in
Chain Overall Width
1.543 in
Plate Thickness
0.625 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SK-2 Heavy Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Rivet End to Center Line
0.72 in
Max. Allowable Load
2,400 lb
Temp. Range
-40 Degrees to 750 Degrees F
Lubrication
SAE 10 to SAE 50
Connecting End to Center Line (In.)
0.823
Tensile Strength
15,400 lb/in
Item
Attachment Link
Tensile Strength (Lb.)
15,400
Type
SK-2 Attachment
Pitch
2 in
Rivet End to Center Line (In.)
0.720
Agency Compliance
American National Standards Institute (ANSI)
Pin Type
Cottered
Connecting End to Center Line
0.823 in
Material
Stainless Steel
Max. Allowable Load (Lb.)
2400
Finish
Plain
Centerline to Hole Center
0.72 in
Centerline to Attachment End
0.823 in
Standards
ANSI
Pin Contruction
Cottered Pin
Attachment Number
SK-2
Attachment Type
Tab
Minimum Operating Temperature
-40 Degrees F
Chain Number
C2080H
Maximum Operating Temperature
750 Degrees F
Material Grade
600
Link Type
Attachment
Number of Tab Holes
1

Description

Attachment Link, Attachment Number SK-2, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
