Tsubaki

Connecting Roller Link, Double Pitch

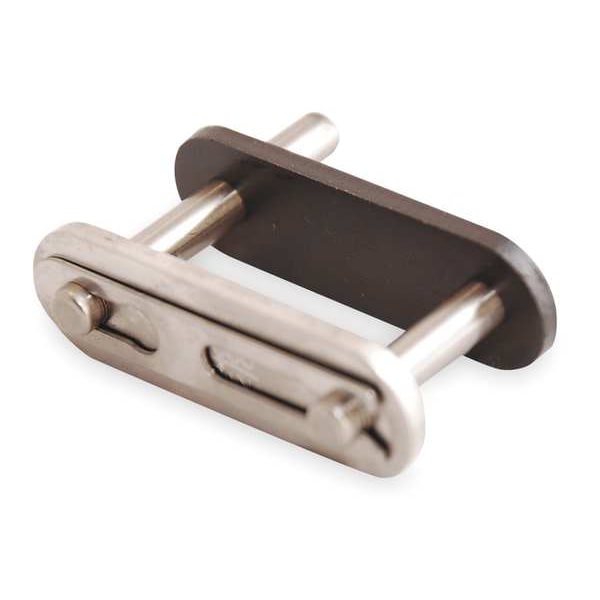

Tsubaki Connecting Roller Link, Double Pitch C2080HD1CL
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$14.10
  • Roller Chain Link Item: Attachment Link
  • Roller Chain Link Type: D-1 Heavy Conveyor
  • Industry Chain Size: C2080H
See full product details
Orders over $75 ship free.
Total: $14.10

Tsubaki #C2080HD1CL Specifications

  • Roller Chain Link Item: Attachment Link
  • Roller Chain Link Type: D-1 Heavy Conveyor
  • Industry Chain Size: C2080H
  • Chain Link Material: Carbon Steel
  • Industry Chain Pitch: 2 in
  • Number of Strands: Single
  • Chain Link Overall Width: 1.543 in
  • Chain Roller Dia.: 0.625 in
  • Roller Link Plate Height: 0.906 in
  • Width Between Roller Link Plates (In.): 0.625
  • Pin Length: 1.543 in
  • ANSI Chain Size: C2080H
  • Overall Width (In.): 1.543
  • Outside Pin Dia.: 0.312 in
  • Max. Allowable Load (Lb.): 2400
  • Pin Link Plate Thickness (In.): 0.906
  • Max. Allowable Load: 2,400 lb
  • Temp. Range: 15 Degrees to 300 Degrees F
  • Roller Dia. (In.): 0.625
  • Rivet End to Center Line (In.): 0.720
  • Pin Link Plate Thickness: 0.906 in
  • Tensile Strength (Lb.): 15,400
  • Pitch: 2"
  • Rivet End to Center Line: 0.72 in
  • Agency Compliance: American National Standards Institute (ANSI)
  • Type: D-1 Attachment
  • Item: Attachment Link
  • Outside Pin Dia. (In.): 0.312
  • Width Between Roller Link Plates: 0.625 in
  • Material: Carbon Steel
  • Connecting End to Center Line: 0.823 in
  • Tensile Strength: 15,400 lb
  • Pin Length (In.): 1.543
  • Connecting End to Center Line (In.): 0.823
  • Pin Type: Cottered
  • Inside Pin Dia.: 0.312 in
  • Lubrication: SAE 10 to SAE 50
  • Roller Link Plate Height (In.): 0.906
  • Length (In.): 2.000
  • Country of Origin (subject to change): Japan
Feedback Help us improve our product information

Description

Attachment Link, D-1 Heavy Conveyor, Industry Chain Size C2080H, Carbon Steel Chain Link Material, Industry Chain Pitch 2 in, Chain Link Overall Width 1.543 in, Chain Roller Dia. 0.625 in, Width Between Roller Link Plates 0.625 in, Roller Link Plate Height 0.906 in, Connecting End to Center Line 0.823 in, Rivet End to Center Line 0.72 in, Pin Length 1.543 in, Inside Pin Dia. 0.312 in, Outside Pin Dia. 0.312 in, Pin Link Plate Thickness 0.906 in, Cottered Pin Type, Max. Allowable Load 2,400 lb

Restrictions and Compliance
