Tsubaki

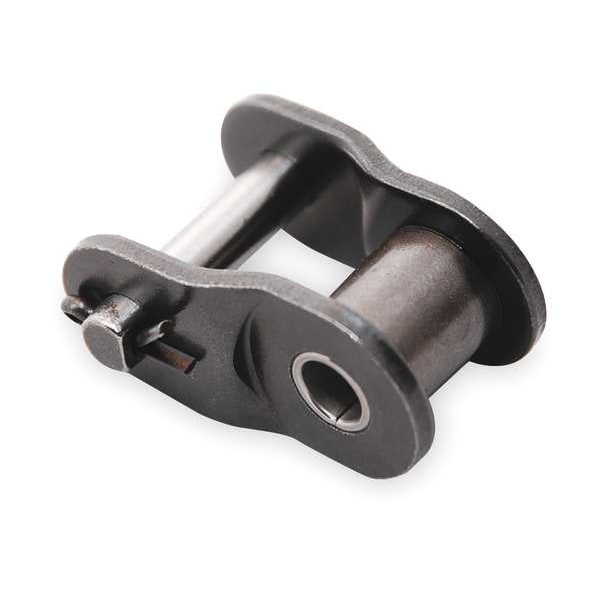

Offset Link, British Standard, PK5

original price: $39.89
6% off
new price: $37.15
/pk 5, $7.43/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type British Standard
  • Industry Chain Size RS08B
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1/2 in
  • Number of Strands 1
See all product information

Product Information

Dimensions

Industry Chain Size RS08B
Chain Link Overall Width 0.724 in
Chain Roller Dia. 0.335 in
Width Between Roller Link Plates 0.305 in
Outside Pin Dia. (In.) 0.175
Pin Length (In.) 0.724
Roller Link Plate Height 0.465 in
Outside Pin Dia. 0.175 in
Roller Dia. (In.) 0.335
Roller Link Plate Height (In.) 0.465
ANSI Chain Size RS08B
Overall Width (In.) 0.724
Length (In.) 0.500
Width Between Roller Link Plates (In.) 0.305
Pin Length 0.724 in
Inside Pin Dia. 0.175 in
Chain Overall Width 23/32 in
Plate Height 15/32 in
Inside Width 5/16 in
Roller Diameter 21/64 in
Pin Outside Diameter 11/64 in

Details

Roller Chain Link Item Offset Link
Roller Chain Link Type British Standard
Chain Link Material Carbon Steel
Industry Chain Pitch 1/2 in
Number of Strands 1
Pin Type Riveted
Tensile Strength (Lb.) 4410
Temp. Range 15 Degrees to 300 Degrees F
Lubrication SAE 10 to SAE 50
Connecting End to Center Line (In.) 0.395
Rivet End to Center Line 0.329 in
Type British Standard
Item Offset Link
Connecting End to Center Line 0.395 in
Rivet End to Center Line (In.) 0.329
Tensile Strength 4,410 lbf
Agency Compliance and DIN 8187, British Stand (BS228), International Standards Organization Metric Dimensions (ISO606)
Pitch 1/2 in
Material Steel
Link Type Offset Link
Plate Thickness 1/16 in
Chain Number 08B
Heavy Series No
Chain Construction Riveted Pin
Features Flat Shape Link Plate
Transverse Pitch 35/64 in
Roller Chain Standard British Standard
Maximum Operating Temperature 300 Degrees F
Pin Contruction Riveted Pin
Minimum Operating Temperature 15 Degrees F
Standards BS 228, DIN 8187, ISO 606

Description

Offset Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 23/32 in, Chain Number 08B, Roller Diameter 21/64 in, Pitch 1/2 in, Link Type Offset, Number of Strands 1, Features Flat Shape Link Plate, Heavy Series No, Inside Width 5/16 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Pin Contruction Riveted Pin, Pin Outside Diameter 11/64 in, Plate Height 15/32 in, Plate Thickness 1/16 in
