Shop TSUBAKI

Roller Chain, Conveyor, C2080HP ANSI, 10 ft

  • Mfr # C2080HPB

  • Zoro # G1203273

product price:
$
449.99
/ea
Free Shipping & Returns

Key Features

Roller Chain Item
Roller Chain
Roller Chain Type
Hollow Pin Conveyor
Chain Number
C2080
Industry Chain Size
C2080
Pin Contruction
Hollow Riveted Pin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2080HPB
Zoro #
G1203273
UPC #
-
Country of Origin
Japan

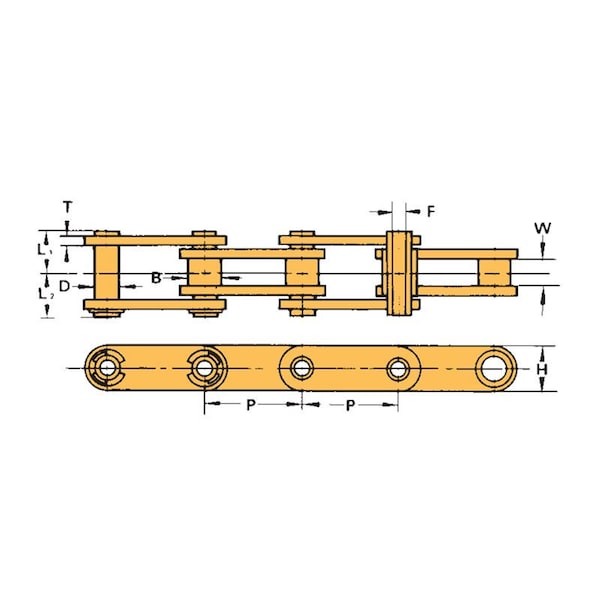

Dimensions

Industry Chain Size
C2080
Chain Length
10 ft
Chain Roller Dia.
0.625 in
Overall Length
10 ft
Roller Bushing Width
0.625 in
Pin Link Plate Thickness
0.125 in
Pin Length
1.341 in
Overall Width
1.341"
ANSI Chain Size
C2080HP
Inside Pin Dia.
0.316 in
Roller Dia.
0.625"
Roller Link Plate Height
0.906 in
Outside Pin Dia.
0.448 in
Chain Overall Width
1.341 in
Length
10 ft
Plate Thickness
0.125 in
Pin Hole Diameter
0.316 in
Roller Diameter
5/8 in
Inside Width
0.625 in
Plate Height
0.906 in
Pin Outside Diameter
0.448 in
Weight Per Length
1.6 lb/ft
Wire Rope Length
10 ft

Details

Item
Roller Chain
Roller Chain Item
Roller Chain
Roller Chain Type
Hollow Pin Conveyor
Chain Number
C2080
Pin Contruction
Hollow Riveted Pin
Number of Strands
1
Chain Material
Carbon Steel
Industry Chain Pitch
2 in
Material
Steel
Tensile Strength
10,800 lbf
Series
Double Pitch Standard Hollow Pin Conveyor
Max. Allowable Load
1,720 lb
Standards
ANSI
Lubrication
SAE 10 to SAE 50
Chain Type
Hollow Pin Conveyor
Includes
(1) Connecting Link
Connecting End to Center Line
0.701 in
Rivet End to Center Line
0.64 in
Chain Tensile Strength
10,800 lb
Pitch
2 in
Temp. Range
15 Degrees to 300 Degrees F
Pin Type
Hollow Pin
Maximum Operating Temperature
300 Degrees F
Chain Construction
Hollow Pin
Minimum Operating Temperature
15 Degrees F
Pitch Type
Double Pitch
Features
This Single-Strand Roller Chain is Designed to Help Transfer Motion From One Set of Sprockets to Another
Heavy Series
No
Working Load Limit
1,720 lb

Description

Roller Chain, Chain Construction Hollow Pin, Overall Length 10 ft, Material Steel, Chain Number C2080, Chain Overall Width 1.341 in, Roller Diameter 5/8 in, Tensile Strength 10,800 lbf, Pitch 2 in, Number of Strands 1, Pin Contruction Hollow Riveted Pin, Pitch Type Double Pitch, Inside Width 0.625 in, Series Hollow Pin Conveyor, Working Load Limit 1,720 lb, Features This Single-Strand Roller Chain is Designed to Help Transfer Motion From One Set of Sprockets to Another, Heavy Series No
