Tsubaki

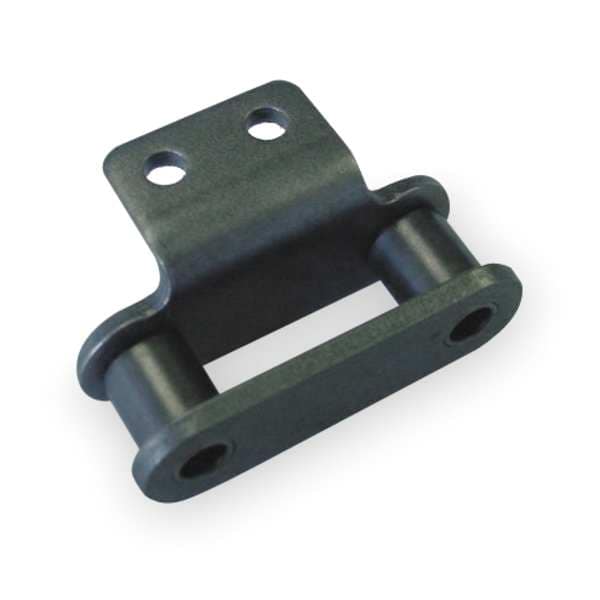

Roller Link, A-2 Attachment

Tsubaki Roller Link, A-2 Attachment C2040A2RL
Tap to zoom
Hover or click to zoom
$5.66

Must order in multiples of 3

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: A-2 Conveyor
  • Industry Chain Size: C2040
See full product details
Orders over $75 ship free.
Total: $16.98

Tsubaki #C2040A2RL Specifications

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: A-2 Conveyor
  • Industry Chain Size: C2040
  • Chain Link Material: Carbon Steel
  • Industry Chain Pitch: 1 in
  • Number of Strands: Single
  • Chain Link Overall Width: 0.717 in
  • Chain Roller Dia.: 0.312 in
  • Inside Pin Dia.: 0.156 in
  • Type: A-2 Attachment
  • Outside Pin Dia. (In.): 0.156
  • Connecting End to Center Line (In.): 0.380
  • Agency Compliance: American National Standards Institute (ANSI)
  • Lubrication: SAE 10 to SAE 50
  • ANSI Chain Size: C2040
  • Roller Link Plate Height (In.): 0.472
  • Pin Link Plate Thickness (In.): 0.060
  • Tensile Strength: 3,750 lb
  • Item: Roller Attachment Link
  • Overall Width (In.): 0.717
  • Outside Pin Dia.: 0.156 in
  • Max. Allowable Load: 595 lb
  • Width Between Roller Link Plates: 0.312 in
  • Connecting End to Center Line: 0.38 in
  • Tensile Strength (Lb.): 3750
  • Pitch: 1"
  • Width Between Roller Link Plates (In.): 0.312
  • Pin Type: Riveted
  • Roller Link Plate Height: 0.472 in
  • Pin Length: 0.705 in
  • Rivet End to Center Line (In.): 0.325
  • Pin Link Plate Thickness: 0.06 in
  • Length (In.): 1.000
  • Rivet End to Center Line: 0.325 in
  • Max. Allowable Load (Lb.): 595
  • Material: Carbon Steel
  • Roller Dia. (In.): 0.312
  • Temp. Range: 15 Degrees to 300 Degrees F
  • Pin Length (In.): 0.705
  • Country of Origin (subject to change): Japan

Description

Roller Attachment Link, A-2 Conveyor, Industry Chain Size C2040, Carbon Steel Chain Link Material, Industry Chain Pitch 1 in, Chain Link Overall Width 0.717 in, Chain Roller Dia. 0.312 in, Width Between Roller Link Plates 0.312 in, Roller Link Plate Height 0.472 in, Connecting End to Center Line 0.38 in, Rivet End to Center Line 0.325 in, Pin Length 0.705 in, Inside Pin Dia. 0.156 in, Outside Pin Dia. 0.156 in, Pin Link Plate Thickness 0.06 in, Riveted Pin Type, Max. Allowable Load 595 lb
