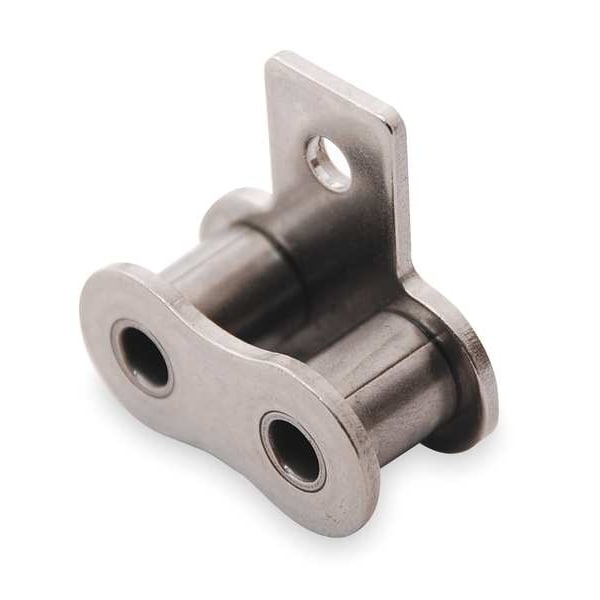

Tsubaki Roller Link, SA-1 Attachment 80ASSA1RL - main

Roller Link, SA-1 Attachment

  • Mfr # 80ASSA1RL

  • Zoro # G0620977

product price: $33.79
/ea

Key Features

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
SA-1
Industry Chain Size
80
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
80ASSA1RL
Zoro #
G0620977
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
Pin Length
1.398 in
Width Between Roller Link Plates
0.625 in
Overall Width (In.)
1.398
Outside Pin Dia.
0.312 in
Length (In.)
1.000
Outside Pin Dia. (In.)
0.312
Pin Link Plate Thickness
0.125 in
Roller Dia. (In.)
0.625
Roller Link Plate Height (In.)
0.949
Inside Pin Dia.
0.312 in
Pin Length (In.)
1.398
Pin Link Plate Thickness (In.)
0.125
Roller Link Plate Height
0.949 in
ANSI Chain Size
80AS
Width Between Roller Link Plates (In.)
0.625
Plate Height
0.949 in
Tab Hole Diameter
0.268 in
Roller Diameter
5/8 in
Tab Width
0.752 in
Inside Width
5/8 in
Plate Thickness
0.125 in
Chain Overall Width
1.398 in

Details

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
SA-1
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Pitch
1 in
Pin Type
Riveted
Connecting End to Center Line
0.758 in
Type
SA-1 Attachment
Material
Stainless Steel
Lubrication
SAE 10 to SAE 50
Connecting End to Center Line (In.)
0.758
Max. Allowable Load (Lb.)
596
Rivet End to Center Line
0.64 in
Max. Allowable Load
596 lb
Temp. Range
-40 Degrees to 750 Degrees F
Agency Compliance
American National Standards Institute (ANSI)
Rivet End to Center Line (In.)
0.640
Item
Roller Attachment Link
Finish
Plain
Heavy Series
No
Centerline to Hole Center
0.969 in
Link Type
Roller Attachment Link
Centerline to Attachment End
1.396 in
Maximum Operating Temperature
750 Degrees F
Material Grade
600
Tab Orientation
Vertical Upward
Pitch Type
Single Pitch
Chain Construction
Riveted Pin
Attachment Number
SA-1
Minimum Operating Temperature
-40 Degrees F
Pin Contruction
Riveted Pin
Attachment Location
One Side
Attachment Type
Tab
Working Load Limit
2,400 lb
Features
Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life
Number of Tab Holes
1
Chain Number
80
Standards
ANSI

Description

Roller Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Roller Attachment, Attachment Location One Side, Centerline to Attachment End 1.396 in, Centerline to Hole Center 0.969 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Features Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life, Heavy Series No
