Tungaloy

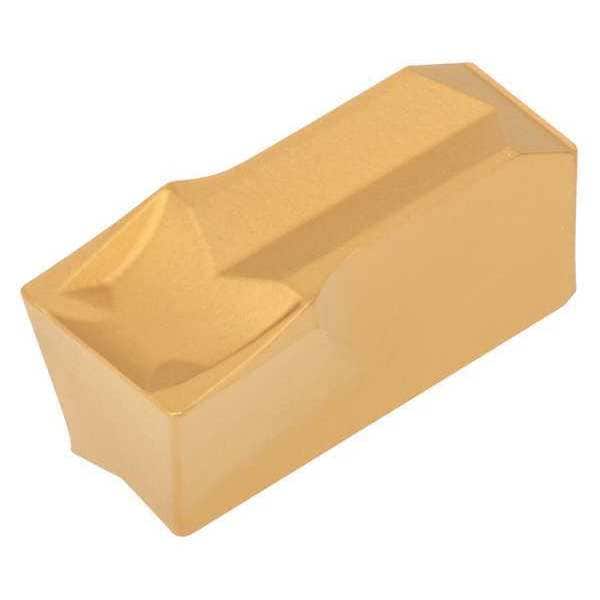

Cut Off Insert, CVD, Single Ended, Carbide

product price: $11.89
/ea
Sold in multiples of 10 for $118.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style Single Ended
  • Insert Seat Size 5
  • Width 0.197 in
  • Depth 0.472 in
  • Chip-Breaker Yes
See all product information

Product Information

Dimensions

Insert Seat Size 5
Width 0.197 in
Depth 0.472 in
Corner Radius 0.2000 in
Insert Size 5
Overall Length 12.00mm
Reference Length 12.00mm
Seat Size 5
Cutting Height 4.50mm
Max. Grooving Width 5.00mm

Details

Item Parting and Grooving Insert
Style Single Ended
Chip-Breaker Yes
Grade T9125
Cutting Direction Neutral
Workpiece Compatibility Cast Iron (K), Steel (P)
Super Alloy (S) Compatibility No
For Use With My-T
No. of Edges 1
Cast Iron (K) Compatibility Yes
Stainless (M) Compatibility No
Rake Positive
Steel (P) Compatibility Yes
Non Ferrous (N) Compatibility No
Coating CVD
Mounting Style Clamp
Hardened (H) Compatibility No
ISO Number GE50 T9125
Lead Angle 0 Degrees
Application Metal Working
Insert Material Carbide
Manufacturer Grade T9125
Measurement System Metric
Cutting Application Cut-Off, Grooving
Primary Material Application Cast Iron, Steel
Material - Machining Carbide
Number of Cutting Edges 1
ANSI Code GE50 T9125
Cutting Location External
Hole Type No Hole
Primary Material Application ISO Code K, P
Insert Holding Type Clamp
Coating Process CVD
Number of Cutting Sides 1

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 5.00mm, ANSI Code GE50 T9125, Coating Process CVD
