  11. Diamond Turning Insert, Diamond, 11/64 in, CCGT, .5, Carbide

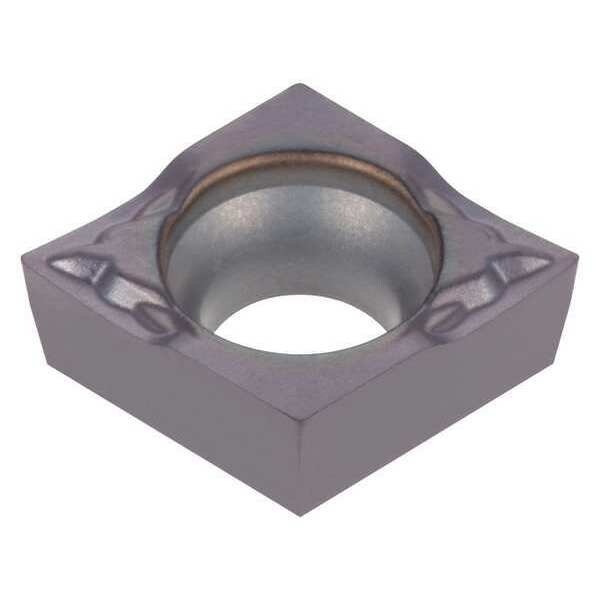

Tungaloy Diamond Turning Insert, Diamond, 11/64 in, CCGT, .5, Carbide 6837456 - main

Diamond Turning Insert, Diamond, 11/64 in, CCGT, .5, Carbide

  • Mfr # 6837456

  • Zoro # G0178215

product price: $24.15
/ea
Sold in multiples of 10 for $241.50

Key Features

Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
11/64 in
Insert Size
5.52.20.5
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6837456
Zoro #
G0178215
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
5.52.20.5
Corner Radius
.5
Mounting Hole Dia.
0.091"
Nose Radius
0.008"
Insert Thickness
0.070"
Thickness
1.5
Depth of Cut
0.0197 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
11/64 in
Chip-Breaker
Yes
Grade
SH730
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
Cutting Direction
Neutral
Cast Iron (K) Compatibility
Yes
Hardened (H) Compatibility
No
No. of Edges
2
Coating
PVD
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P)
Relief Angle
7 Degrees
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Mounting Style
Screw-On
Stainless (M) Compatibility
Yes
Cutting Application
Internal Turning on Small Lathes
Finish - Machining
TiAlN
ANSI Code
CCGT 5.52.20.5 JS SH730
Included Angle
80 Degrees
Material - Machining
Carbide
Number of Cutting Edges
2
Shape
Rhombic
Chip-Breaker Code
JS
Secondary Material Application ISO Code
M, P, S
Clearance Angle
7 Degrees
Measurement System
Fractional Inch
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
M, P, S
Standards
ISO 1832/AM1-1998, JIS B4120-1998
Secondary Material Application
Nickel, Stainless Steel, Steel, Titanium
Manufacturer Grade
SH730
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material
Carbide
Style
CCGT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code JS, Inscribed Circle 11/64 in, TiAlN, ANSI Code CCGT 5.52.20.5 JS SH730, Clearance Angle 7 Degrees
