  11. Diamond Turning Insert, Diamond, 11/64 in, CCGW, .5, CBN

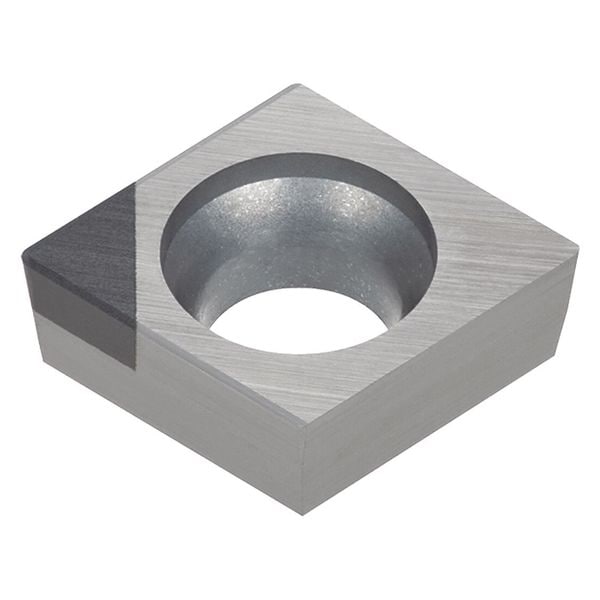

Tungaloy Diamond Turning Insert, Diamond, 11/64 in, CCGW, .5, CBN 6888191 - main

Diamond Turning Insert, Diamond, 11/64 in, CCGW, .5, CBN

  • Mfr # 6888191

  • Zoro # G0178267

product price: $62.99
/ea

Key Features

Insert Shape
Diamond
Insert Style
CCGW
Inscribed Circle
11/64 in
Insert Size
5.52.20.5
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6888191
Zoro #
G0178267
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
5.52.20.5
Corner Radius
.5
Mounting Hole Dia.
0.091"
Nose Radius
0.008"
Insert Thickness
0.070"
Thickness
1.5
Depth of Cut
0.0079 in
Cutting Edge Length
0.0750 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGW
Inscribed Circle
11/64 in
Chip-Breaker
Yes
Grade
BX310
Insert Material
CBN
Insert Application
Finishing
Rake
Positive
ISO Number
CCGW 5.52.20.5
Hardened (H) Compatibility
Yes
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
No
Coating
Uncoated
Mounting Style
Screw-On
Cutting Direction
Neutral
Relief Angle
7 Degrees
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Hardened (H)
No. of Edges
1
Steel (P) Compatibility
No
Included Angle
80 Degrees
Finish - Machining
Bright (Uncoated)
Manufacturer Grade
BX310
Cutting Application
Finishing
Chip-Breaker Style
Flat Top
Primary Material Application ISO Code
H
Number of Cutting Edges
1
Material - Machining
CBN
Measurement System
Fractional Inch
ANSI Code
1QP-CCGW 5.52.20.5 BX310
Primary Material Application
Hardened Steel
Clearance Angle
7 Degrees
Shape
Rhombic
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material
CBN
Application
Finishing
Style
CCGW

Description

Diamond Turning Insert, Inscribed Circle 11/64 in, Bright (Uncoated), ANSI Code 1QP-CCGW 5.52.20.5 BX310, Chip-Breaker Style Flat Top, Clearance Angle 7 Degrees
