  11. Diamond Turning Insert, Diamond, 3, DCMT, 1, Carbide

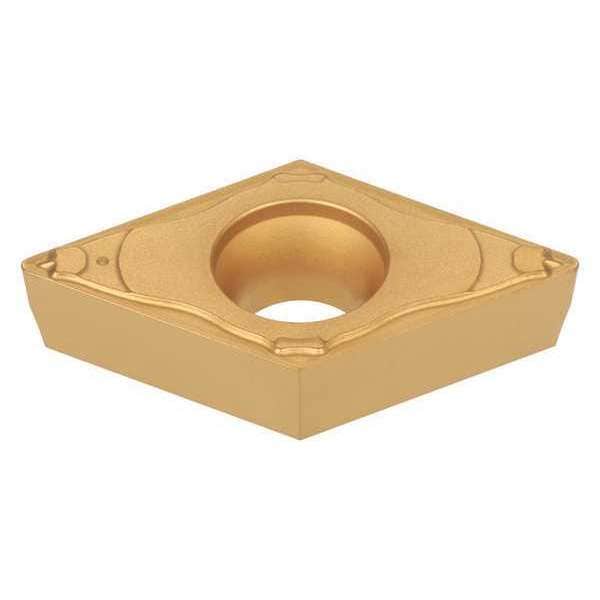

Tungaloy Diamond Turning Insert, Diamond, 3, DCMT, 1, Carbide DCMT11T304-PF T6120 - main

Diamond Turning Insert, Diamond, 3, DCMT, 1, Carbide

  • Mfr # DCMT11T304-PF T6120

  • Zoro # G0534007

product price: $12.15
/ea
Sold in multiples of 10 for $121.50

Key Features

Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
3
Insert Size
11T304
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCMT11T304-PF T6120
Zoro #
G0534007
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
11T304
Corner Radius
1
Insert Thickness
0.156"
Nose Radius
0.016"
Mounting Hole Dia.
0.173"
Depth of Cut
1.50mm
Cutting Edge Length
11.60mm
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
T6120
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
DCMT11T304-PF T6120
Mounting Style
Screw-On
Non Ferrous (N) Compatibility
No
No. of Edges
2
Hardened (H) Compatibility
No
Relief Angle
7 Degrees
Workpiece Compatibility
Stainless (M)
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
No
Coating
CVD
Cast Iron (K) Compatibility
No
Cutting Direction
Neutral
Finish - Machining
TiCN+TiN
Number of Cutting Edges
2
Primary Material Application ISO Code
M10 - M20
Shape
Rhombic
Primary Material Application
Stainless Steel
Included Angle
55 Degrees
Manufacturer Grade
T6120
Material - Machining
Carbide
Standards
ISO 1832/AM1-1998, JIS B4120-1998
Clearance Angle
7 Degrees
Secondary Material Application ISO Code
P
Coating Process
CVD
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Cutting Application
Finishing
Secondary Material Application
Steel
Chip-Breaker Code
PF
Measurement System
Fractional Inch
Material
Carbide
Style
DCMT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code PF, Inscribed Circle 3/8 in, TiCN+TiN, Clearance Angle 7 Degrees , Coating Process CVD
