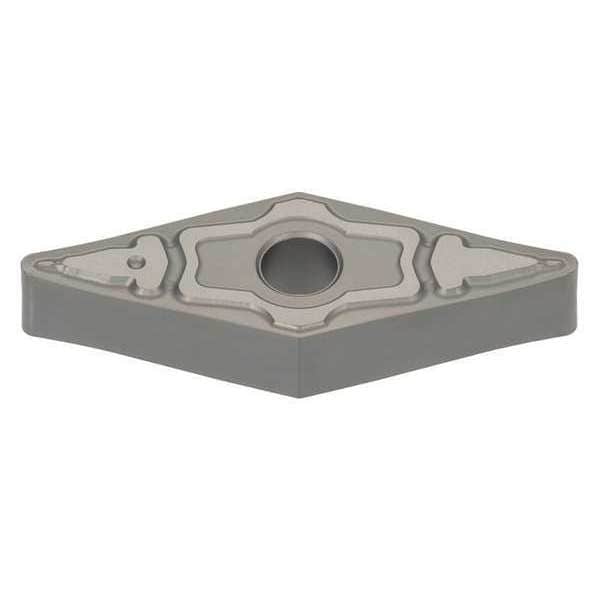

Tungaloy Diamond Turning Insert, Diamond, 3, VNMG, 1, Cermet 6809453 - main

Diamond Turning Insert, Diamond, 3, VNMG, 1, Cermet

  • Mfr # 6809453

  • Zoro # G1925141

product price: $16.19
/ea
Sold in multiples of 10 for $161.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6809453
Zoro #
G1925141
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Insert Thickness
0.187"
Nose Radius
0.016"
Mounting Hole Dia.
0.150"
Depth of Cut
0.0590 in
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
NS520
Insert Material
Cermet
Insert Application
Finishing
Rake
Negative
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Relief Angle
0 Degrees
Cast Iron (K) Compatibility
Yes
No. of Edges
4
Workpiece Compatibility
Cast Iron (K), Steel (P)
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Coating
Uncoated
Stainless (M) Compatibility
No
Mounting Style
Clamp-On
Steel (P) Compatibility
Yes
Cutting Application
Finishing
Chip-Breaker Code
TS
Secondary Material Application
Cast Iron, Steel
Shape
Rhombic
Finish - Machining
Bright (Uncoated)
Number of Cutting Edges
4
Primary Material Application ISO Code
K, P
Included Angle
35 Degrees
ANSI Code
VNMG 331 TS NS520
Clearance Angle
0 Degrees
Primary Material Application
Cast Iron, Steel
Insert Holding Type
Straight Hole
Secondary Material Application ISO Code
K, P
Measurement System
Fractional Inch
Material - Machining
Cermet
Standards
ISO 26623-1
Manufacturer Grade
NS520
Material
Cermet
Style
VNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code TS, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code VNMG 331 TS NS520, Clearance Angle 0 Degrees
