  11. Triangle Turning Insert, Triangle, 4.37mm, TPGT, 0.1 mm, Carbide

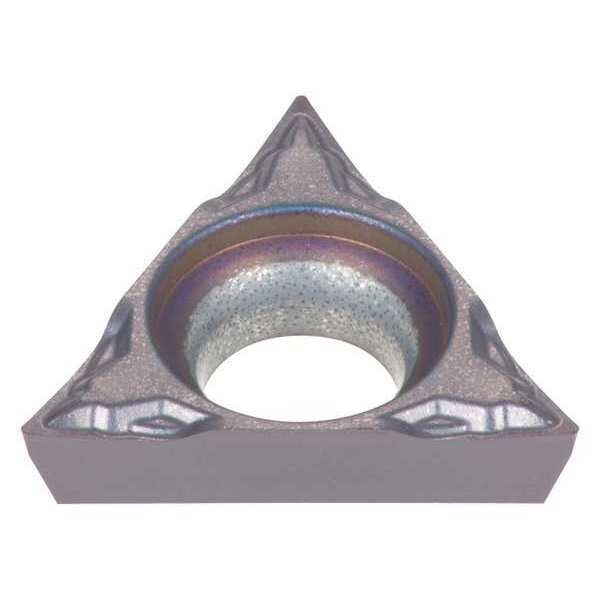

Tungaloy Triangle Turning Insert, Triangle, 4.37mm, TPGT, 0.1 mm, Carbide 6837557 - main

Triangle Turning Insert, Triangle, 4.37mm, TPGT, 0.1 mm, Carbide

  • Mfr # 6837557

  • Zoro # G0178090

product price: $19.89
/ea
Sold in multiples of 10 for $198.90

Key Features

Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
4.37mm
Insert Size
5.520
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6837557
Zoro #
G0178090
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
5.520
Corner Radius
0.1 mm
Mounting Hole Dia.
0.106"
Nose Radius
0.004"
Insert Thickness
0.063"
Through Hole Inside Dia.
2.58 mm
Thickness
1.59 mm
Depth of Cut
0.50 mm
Cutting Edge Length
7.6 mm

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
4.37mm
Chip-Breaker
Yes
Grade
SH730
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
TPGT070101-JS
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
No. of Edges
3
Coating
PVD
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P)
Cutting Direction
Neutral
Relief Angle
11 Degrees
Steel (P) Compatibility
Yes
Mounting Style
Screw-On
Hardened (H) Compatibility
No
Manufacturer Grade
SH730
Cutting Application
Internal Turning on Small Lathes
Coating Process
PVD
Included Angle
60 Degrees
Secondary Material Application ISO Code
M, P, S
Primary Material Application ISO Code
M, P, S
ANSI Code
TPGT 5.520 JS SH730
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker Code
JS
Number of Cutting Edges
3
Finish - Machining
TiAlN
Material - Machining
Carbide
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Secondary Material Application
Nickel, Stainless Steel, Steel, Titanium
Clearance Angle
11 Degrees
Shape
Triangle
Measurement System
Metric
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code JS, Inscribed Circle 4.37mm, TiAlN
