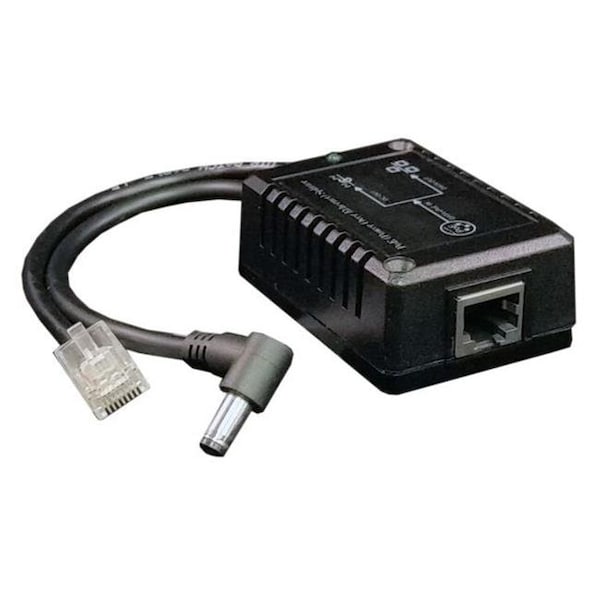

Tycon Systems POE-MSPLT-4809 POE Splitter - 9V DC 12W (Discontinued)

The line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output voltage. The DC output is provided on a standard 5.5 mm./2.1 mm. barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6 in. cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.

• Very Compact Size
• Converts an Active PoE Input to a DC output
• Output Power Up To 15W
• Short Circuit, Over Current Protection

• Output Voltage - 9VDC
• Output Current - 1.34A
• Output Power - 12W
• DC Output Connector - 5.5 mm. / 2.1 mm. Barrel Connector
• Output Cable Length - 6 in.
• Load Reg & Noise - 5%
• Line Reg & Ripple - 1%
• PoE Input (RJ45) - IEEE 802.3af/at or Passive PoE (36 - 60VDC)
• Ethernet Speed - 10/100MB
• Efficiency - 75% Min
• EMC Standards - FCC Class B NE55022 Class B
• Isolation Voltage - 1500VDC
• Isolation Resistance - 100m Ohms Minimum
• Operating Temperature - 25 to +50°C
• Operating Humidity - 5% - 90% non-condensing
• Storage Temperature - 40 to +80°C
• 48VDc
• 5.5 x 2.1 connector
