  11. Tubing, 1/8 I.D., 50 ft., Yellow, Flexible

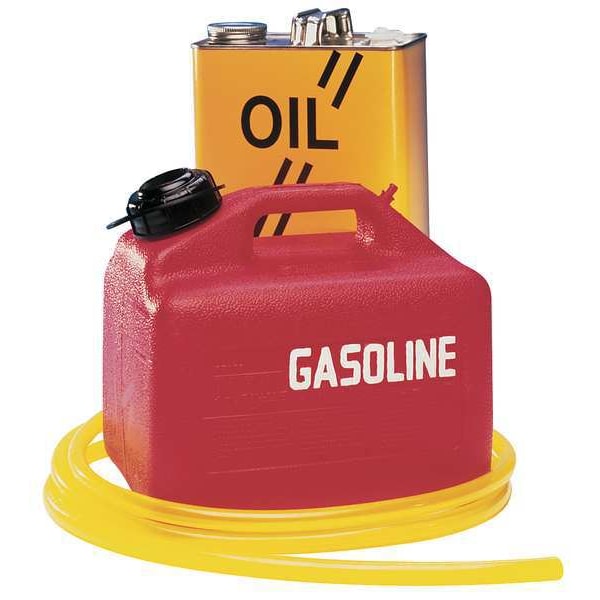

Tygon Tubing, 1/8 I.D., 50 ft., Yellow, Flexible AAG00007 - main

Tubing, 1/8 I.D., 50 ft., Yellow, Flexible

  • Mfr # AAG00007

  • Zoro # G4030792

product price: $70.89
/ea

Key Features

Tube Material
Tygon(R) PVC
Tube Hardness
Shore A: 57
Inside Dia.
1/8 in
Outside Dia.
1/4 in
Wall Thickness
0.06 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AAG00007
Zoro #
G4030792
UPC #
-
Country of Origin
United States

Dimensions

Inside Dia.
1/8 in
Outside Dia.
1/4 in
Wall Thickness
0.06 in
Tube Length
50 ft
Tube Bend Radius
3/8 in
Outside Diameter
1/4 in
Overall Length
50 ft
Inside Diameter
1/8 in
Bend Radius
3/8 in

Details

Tube Material
Tygon(R) PVC
Tube Hardness
Shore A: 57
Max. Pressure
50 psi
Tube Color
Yellow
Item
Tubing
Temp. Range
165 Degrees F
Application
Fuels, Lubricant, Water
Vacuum Rating
29.9 in Hg
SAE or Metric
SAE
Flexibility
Flexible
Tensile Strength
1,820 psi
Standards
ASTM D1004, ASTM D149, ASTM D1599, ASTM D2240, ASTM D395 Method B, ASTM D412, ASTM D570, ASTM D746, ASTM D792, SAE J1527
Material
PVC
Color
Yellow
Resistance Properties
Hardening Resistant, Ozone Resistant, Swelling Resistant, Tear Resistant, UV Resistant
Stripe Color
No Stripe
Clarity
Semi-Clear
System of Measurement
Inch
Beverage, Food, and Water Compatibility
Citric Acid, Glycerin, Linseed Oil, Non-Potable Water, Oils and Fats, Salt Water, Vinegar
Does Not Contain
BPA, Phthalates above limits in REACH, RoHS, CA Prop 65, Latex, Substances on RoHS above limit
Material Trade Name
Tygon
Hardness
Shore A 57
Vacuum Rated
Vacuum Rated
Reinforcement
Not Reinforced
Jacket Material
No Jacket
Tube Form
Coil
Maximum Operating Pressure
50 psi @ 73 Degrees F
Elongation
310%
Maximum Operating Temperature
165 Degrees F
Material Trade Number
F-4040-A
Flow Application
Coolant Transfer, Cutting Compounds, Heating Fuels, Lawn and Garden Equipment, Lubrication Lines, Polishing Equipment, Recreational Vehicles, Small Engine Fuel Lines
Fitting Compatibility
Barbed
Jacket Color
Yellow
Autoclavable
No
Maximum Vacuum Pressure
29.9 in Hg
Industry Application
Automotive
For Environment
Chemical
Petroleum Product Compatibility
Fuel Oil, Gasoline, Automotive, Kerosene, Lubricants, Mineral Oil, Turpentine
For Fluid Type
Coolants, Fuel, Industrial Lubricants
Peristaltic Pump Compatible
Yes
Food and Beverage Compatibility
Citric Acid, Glycerin, Linseed Oil, Non-Potable Water, Oils and Fats, Salt Water, Vinegar

Description

Tubing, Application Fuels, Lubricant, Water, Color Yellow, Hardness Shore A 57, Inside Diameter 1/8 in, Jacket Color Yellow, Jacket Material No Jacket, Material PVC, Material Trade Name Tygon, Material Trade Number F-4040-A, Maximum Operating Pressure 50 psi @ 73 Degrees F, Maximum Operating Temperature 165 Degrees F, Maximum Vacuum Pressure 29.9 in Hg, Outside Diameter 1/4 in, Overall Length 50 ft, Peristaltic Pump Compatible Yes, PEX Type Not Applicable

Restrictions
