  9. Dual Differential Input Manometer, 9V

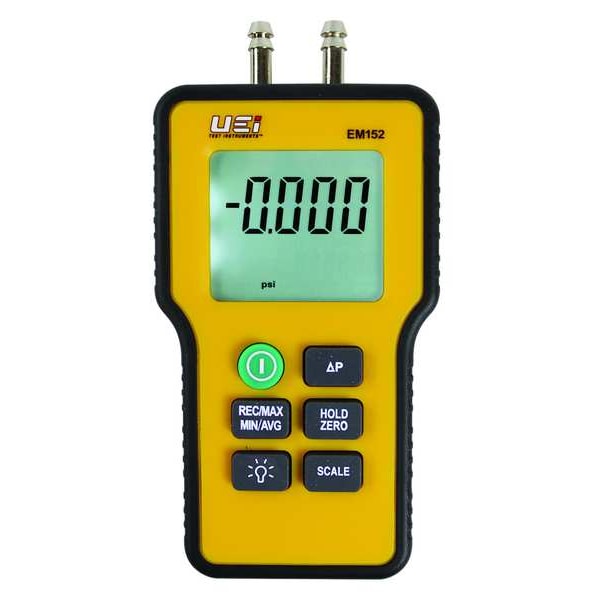

Uei Test Instruments Dual Differential Input Manometer, 9V EM152 - main

Dual Differential Input Manometer, 9V

  • Mfr # EM152

  • Zoro # G4594926

product price: $135.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Barbed Gas Valve Fitting, (2) Flexible Transparent Silicone Tubing, Soft Pouch
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
9V
Pressure Resolution
0.001 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EM152
Zoro #
G4594926
UPC #
053533507492
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Process Connection Size
1/4 in
For Tubing Diameter
1/4 in
Battery Size
9V

Details

Item
Digital Manometer
Includes
(2) Barbed Gas Valve Fitting, (2) Flexible Transparent Silicone Tubing, Soft Pouch
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
9V
Pressure Resolution
0.001 psi
Operating Range
+/-0 to 60 in wc
Operating Temp. Range
32 Degrees to 104 Degrees F (0 Degrees to 40 Degrees C)
Resolution
0.01 in wc
Velocity
None
Pressure Range
-60 in wc to 60 in wc
Storage Temp. Range
14 Degrees to 140 Degrees F / -1 Degrees to 60 Degrees C
Alarm
No
Data Storage
Yes
Type
Digital
Interface
None
Connection Type
(2) Barbed
Max. Pressure
2.16 psi
Display
Backlit LCD
Calibration Certificate Included
No
Application
Gas
Batteries Required
Yes
Number of Connections
2
Minimum Operating Temperature
32 Degrees F
Digital Display Features
Backlit LCD
NIST Traceable Certificate
No
Maximum Operating Pressure
60 in wc
Series
EM152
Data Hold
Yes
Process Connection Type
Hose Barb
Operating Pressure Range
+/-0 to 60 in wc
Display Units
bar, cm H2O, ft H2O, in H2O, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Maximum Pressure
60 in wc
Batteries Included
Yes
Storage Temperature Range
14 Degrees to 140 Degrees F
Manometer Type
General Purpose Digital Manometer
Auto Power Off
Yes
Min/Max Capture
Yes
Maximum Operating Temperature
104 Degrees F
Type of Pressure
Differential
Number of Pressures Measured
Dual
Minimum Pressure
-60 in wc
Pressure Stages Measured
Dual
Includes Min/Max Capture
Min/Max Capture
Operating Temperature - Maximum
104 Degrees F
Includes Data Logging
No Data Logging Included
Number of Process Connections
2
Includes Batteries
Batteries Included
Includes Data Hold
Data Hold
Includes Alarm
No Alarm Included
Pressure Type Measured
Differential
Digital Display Type
Backlit LCD
Operating Pressure - Maximum
10 psi
Operating Temperature - Minimum
32 Degrees F
Process Connection Material
316 Stainless Steel
Pressure Measurement - Maximum
60 in wc
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Pressure Measurement - Minimum
-60 in wc

Description

Digital Manometer, Maximum Pressure 60 in wc, Minimum Pressure -60 in wc, Accuracy +/-0.3 Percent of Full Scale, Process Connection Size 1/4 in, Process Connection Type Hose Barb, Batteries Included Yes, Digital Display Features Backlit LCD, NIST Traceable Certificate No, Series EM152, Alarm No, Application Gas, Auto Power Off Yes, Batteries Required Yes, Battery Type 9V, Calibration Certificate Included No, Data Hold Yes, Data Interface Not Applicable

Restrictions

Hazardous material
