  9. NIST Certified Hi-Resolution Differential Manometer w/ Backlit LCD, Digital, 9V, 2.16 psi

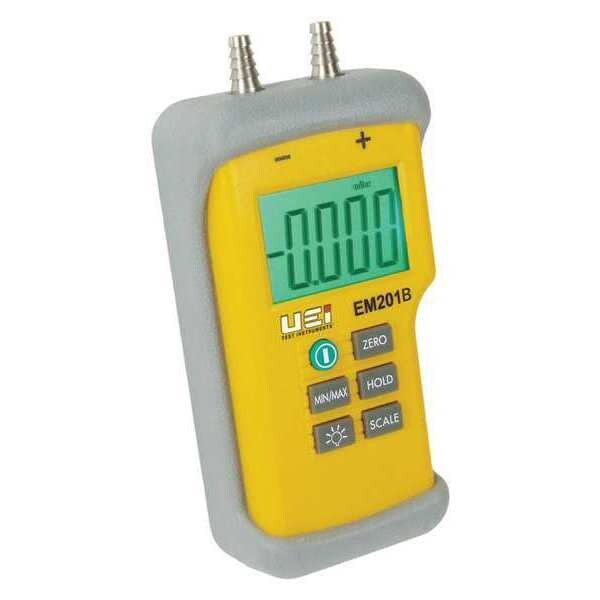

Uei Test Instruments NIST Certified Hi-Resolution Differential Manometer w/ Backlit LCD, Digital, 9V, 2.16 psi EM201B-N - main

NIST Certified Hi-Resolution Differential Manometer w/ Backlit LCD, Digital, 9V, 2.16 psi

  • Mfr # EM201B-N

  • Zoro # G4310437

product price: $426.99
/ea
Free Shipping & Returns

Key Features

Includes
Pressure Tubes with Brass Fittings
Standards
CE, NIST, RoHS
Accuracy
+/-0.02 in WG Less Than 2 in wc, +/-1%RDG Greater Than 2 in wc
Pressure Accuracy
+/-1%RDG Greater Than 2 in wc
Battery Type
9V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EM201B-N
Zoro #
G4310437
UPC #
053533508017
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr
Process Connection Size
1/4 in
Battery Size
9V

Details

Item
Digital Manometer
Includes
Pressure Tubes with Brass Fittings
Standards
CE, NIST, RoHS
Accuracy
+/-0.02 in WG Less Than 2 in wc, +/-1%RDG Greater Than 2 in wc
Pressure Accuracy
+/-1%RDG Greater Than 2 in wc
Battery Type
9V
Pressure Resolution
0.001 psi
Operating Range
-20 to 20 in wc
For Use With
Measuring Pressure
Operating Temp. Range
32 Degrees to 104 Degrees F
Resolution
0.001 in wc
Data Storage
No
Standards and Approvals
NIST
Connection Type
(2) Barbed
Interface
None
Alarm
No
Type
Digital
Calibration Certificate Included
NIST
Velocity
None
Pressure Range
-60 in wc to 60 in wc
Max. Pressure
2.16 psi
Display
4 digit LCD
Maximum Operating Pressure
60 in wc
Manometer Type
General Purpose Digital Manometer
Batteries Included
Yes
Process Connection Type
Hose Barb
Operating Pressure Range
-60 to 60 in wc
Minimum Pressure
-60 in wc
Display Units
in wg, mbar, Pa, psi
Number of Connections
2
Min/Max Capture
Yes
Batteries Required
Yes
Series
EM120B
Digital Display Features
4 Digit Backlit LCD
Process Connection Material
Brass
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Maximum Pressure
60 in wc
Auto Power Off
Yes
Application
Gas
Number of Pressures Measured
Dual
NIST Traceable Certificate
Yes
Includes Min/Max Capture
Min/Max Capture
Pressure Measurement - Maximum
60 in wc
Includes Batteries
Batteries Included
Includes Data Logging
No Data Logging Included
Operating Pressure - Maximum
10 psi
Number of Digits
4
Pressure Type Measured
Differential
Digital Display Type
Backlit LCD
Pressure Stages Measured
Dual
Includes NIST-Traceable Calibration Certificate
NIST-Traceable Calibration Certificate Included
Pressure Measurement - Minimum
-60 in wc
Number of Process Connections
2
Includes Alarm
No Alarm Included
Operating Temperature - Maximum
104 Degrees F
Operating Temperature - Minimum
32 Degrees F

Description

Digital Manometer, Maximum Pressure 60 in wc, Minimum Pressure -60 in wc, Accuracy +/-0.02 in WG less than 2 in wc, +/-1 PercentRDG greater than 2 in wc, Process Connection Size 1/4 in, Process Connection Type Hose Barb, Batteries Included Yes, Digital Display Features 4 Digit Backlit LCD, NIST Traceable Certificate Yes, Series EM120B, Alarm No, Application Gas, Auto Power Off Yes, Batteries Required Yes, Battery Type 9V, Calibration Certificate Included NIST, Data Interface Not Applicable

Restrictions

Hazardous material
