  9. Wireless Digital Multimeter, 1,000 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD
No Product Image Available

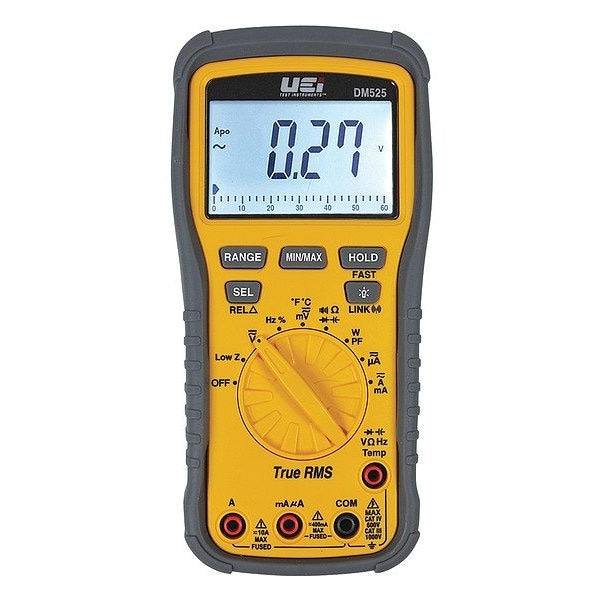

Wireless Digital Multimeter, 1,000 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD

  • Mfr # DM525

  • Zoro # G705916177

product price: $309.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Instrument Counts
6,000
Includes
(3) Test Leads ATL57, (4) AA Batteries, AAC3 Alligator Clips, Att71 Temp Probe
Standards
CE Conformity: EN 61010-1: 2010 3rd Edition, ETL Listed: 61010-1: 2012 3rd Edition, LEC 61010: 61010-2-033: 2012 Edition, RoHs: FCC/IC Compliant
Auto Power Off
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DM525
Zoro #
G705916177
UPC #
053533508192
Country of Origin
Korea, Republic of

Dimensions

Manufacturers Warranty Length
2 yr
Battery Size
AA

Details

Item
Wireless Digital Multimeter
Display Type
Backlit LCD
Instrument Counts
6,000
Includes
(3) Test Leads ATL57, (4) AA Batteries, AAC3 Alligator Clips, Att71 Temp Probe
Standards
CE Conformity: EN 61010-1: 2010 3rd Edition, ETL Listed: 61010-1: 2012 3rd Edition, LEC 61010: 61010-2-033: 2012 Edition, RoHs: FCC/IC Compliant
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Instrument Frequency Counter Range
99.99 Hz to 999.99 kHz
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Duty Cycle
Yes
Calibration Certificate Included
No
Basic DC Accuracy
+/-0.50% of Reading +3 Digits
Display
Backlit LCD
Max. AC Amps
10 A
Capacitance Range
0 to 9999 uF
Series
DM5
Max. Ohms
50 M
NIST Certification By
Techni-Tool
Max. DC Amps
10 A
Auto Ranging
Yes
Temp. Range
-49 Degrees to 1112 Degrees F
NIST Certification By Manufacturer
Not Certified
Basic AC Current Accuracy
+/-2%
Basic DC Current Accuracy
+/-1%
Maximum Frequency Measurement
999.9 kHz
Maximum DC Current Measurement
10 A
Basic AC Voltage Accuracy
+/-2%
Computer Interface Connection Type
None
Minimum AC Current Measurement
0 uA
Minimum/Maximum Memory
Yes
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Minimum Temperature Measurement
-328 Degrees F
AC Response Calculation
TRMS
Maximum Temperature Measurement
2,462 Degrees F
Maximum Resistance Measurement
50 megaohm
Basic DC Voltage Accuracy
+/-0.75% +8 Digits; +/-2.0% +8 Digits
Minimum Frequency Measurement
99.99 Hz
Minimum DC Voltage Measurement
6 V
Minimum DC Current Measurement
0 mA
Capacitance Measurement Accuracy
3 %
Bar Graph Included
Yes
Resistance Measurement Accuracy
+/-1.2%
Frequency Measurement Accuracy
0.05 %
Maximum AC Voltage Measurement
1,000 V
Maximum AC Current Measurement
10 A
Minimum AC Voltage Measurement
0 V
Maximum DC Voltage Measurement
1,000 V
Temperature Measurement Accuracy
1.5 %
Maximum Capacitance Measurement
9,999 uF

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-2 Percent, Basic DC Voltage Accuracy +/-0.75 Percent +8 Digits; +/-2.0 Percent +8 Digits, Basic DC Current Accuracy +/-1 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000, Special Features 1 MS Fast Response, IP42 Ingress Protection, Low Battery Indicator, Wireless Capability
