Shop UEI TEST INSTRUMENTS

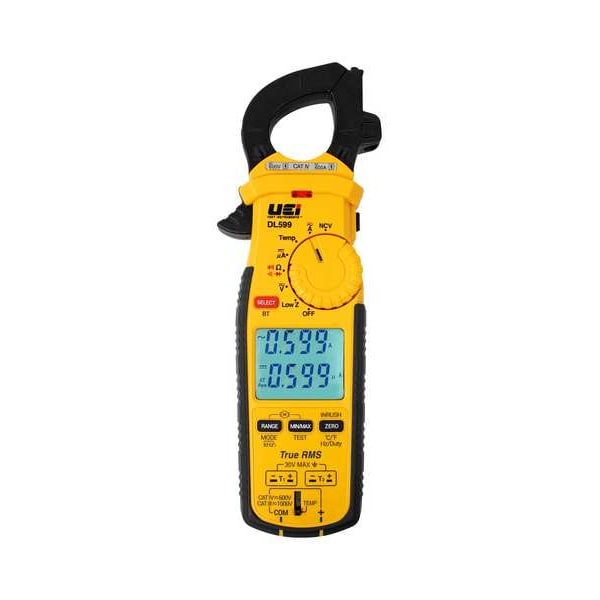

Wireless TRMS Clamp Meter w/ 3-Phase & I, Backlit LCD, 600 A A, 1.25 in (31.75mm) Jaw Capacity

  • Mfr # DL599-N
  • Zoro # G904393014
product price:
$
432.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000V AC
Max. Ohms
60 megaohm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DL599-N
Zoro #
G904393014
UPC #
053533509328
Country of Origin
Korea, Republic of

Dimensions

Max. Conductor Size
31.0mm
Manufacturers Warranty Length
2 yr
Maximum Conductor Size
31.0mm

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000V AC
Max. Ohms
60 megaohm
Jaw Capacity
1.25 in (31.75mm)
Temp. Range
-328 Degrees to 2462 Degrees F
Safety Rating
CAT III 1000V, CAT IV 600V
Display
Backlit LCD
Jaw Opening
1.25 in
Max. DC Amps
600 A
Max. AC Volts
1,000V AC
Calibration Frequency
90 Hz
Special Features
Built In Voltage Detector, LED Work Light
Non-Contact Voltage Detector
Yes
Data Hold
Yes
Operating Temp.
39 Degrees to 122 Degrees F (0 Degrees to 50 Degrees C)
Audible Continuity
Yes
Standards
ETL lised
Auto Power Off
No
Counts
6000
Inrush
Yes
Bar Graph
No
Memory
Min/Max/Average
Includes
Alligator Clips, Back Probe Leads, Batteries, Temperature Probe, Test Leads, Zippered Pouch
AC Current Accuracy
+/-1.8% + 5dgts
Calibration Certificate
cETLus UL 61010-1: 2012
Peak Hold
No
Battery Type
(4) AAA
Diode Test
Yes
Frequency Counter
99.99kHz
Thermometer Type
Type K Thermocouple
Midscale Resistance
35 megaohm
Auto Ranging
Yes
Capacitance
9,999 uF
Display Type
Backlit LCD
Jaw Style
Clamp
Calibration Certificate Included
NIST Traceable
Includes Auto Sensing
No Auto Sensing Included
Minimum DC Current Measurement
600 uA
Current Units
uA
Minimum DC Voltage Measurement
1,000 V
IP Rating
IP42
Thermal Imaging
No
Maximum Frequency Measurement
1,999 Hz
Maximum AC Current Measurement
1,000 A
Minimum Resistance Measurement
60 ohm
Maximum AC Voltage Measurement
1,000 V
Instrument Counts
6,000
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Maximum DC Current Measurement
600 uA
Maximum DC Voltage Measurement
100 V
AC Response Calculation
TRMS
Minimum AC Current Measurement
0.3 A
Data Output Type
Wi-Fi
Data Logging
Yes
Voltage Units
mV, V
Parameters Measured
AC Current, AC Voltage, DC Voltage, Temperature
Minimum AC Voltage Measurement
600 mV
Temperature Types Measured
Temperature Degrees F
Intrinsically Safe
No
Jaw Detachability
Fixed
Removable Screen
No

Description

Wireless TRMS Clamp Meter w/ 3-Phase
