Shop UEI TEST INSTRUMENTS

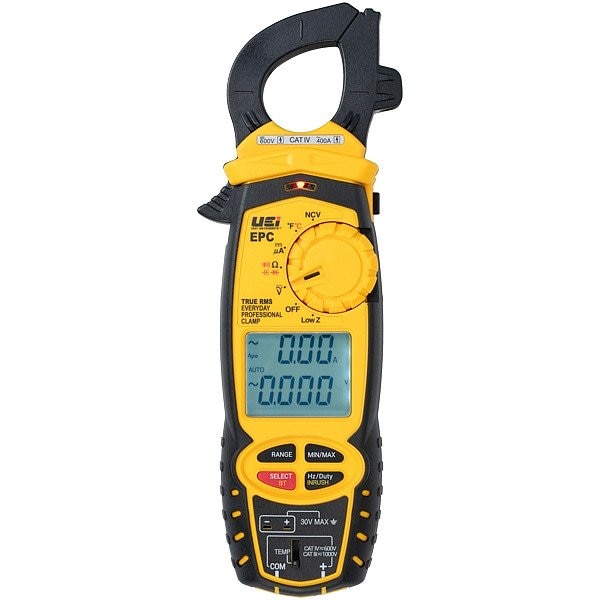

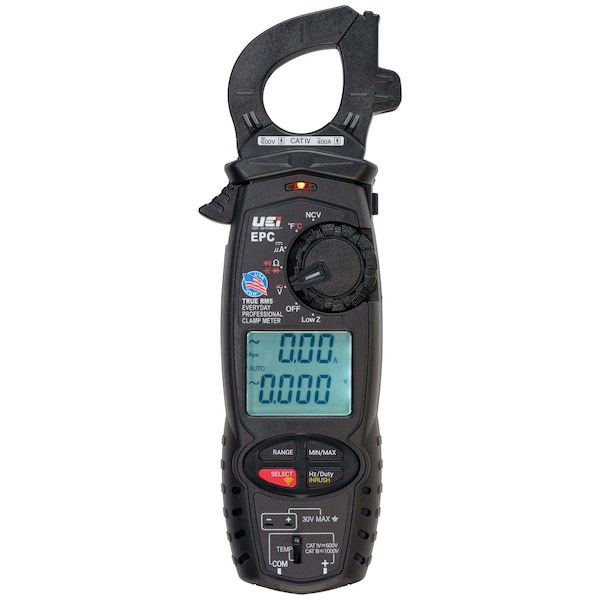

Digital Clamp Meter, TRMS, 400 A

  • Mfr # EPC
  • Zoro # G621890414
product price:
$
217.99
/ea
Free Shipping & Returns

Key Features

Maximum Resistance Measurement
40 megaohm
Standards
CATIV 600V/CATIII 1000VFCC Compliant, cETLus UL 61010-1: 2012
Auto Power Off
Yes
Data Output Type
Wi-Fi
AC Voltage Measurement Resolution
750 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EPC
Zoro #
G621890414
UPC #
53533510027
Country of Origin
Korea, Republic of
Maximum Resistance Measurement
40 megaohm
Standards
CATIV 600V/CATIII 1000VFCC Compliant, cETLus UL 61010-1: 2012
Auto Power Off
Yes
Data Output Type
Wi-Fi
AC Voltage Measurement Resolution
750 V AC
Maximum DC Voltage Measurement
1,000 V
Frequency Measurement Accuracy
0.1% + 4dgts
Midscale Resistance
400 kiloohm
Multiple On-Screen Displays
Yes
Maximum DC Current Measurement
2,000 uA
Maximum Frequency Measurement
30 kHz
Data Logging
Yes
Minimum DC Current Measurement
400 uA
Minimum DC Voltage Measurement
400 mV
Frequency Measurement Resolution
0.01 Hz
Maximum Storage Temperature
140 Degrees F
Temperature Types Measured
Temperature Degrees F
Capacitance Measurement Accuracy
3.5% + 6dgts
CAT Safety Rating
CAT IV 1000V, CAT IV 600V
Minimum AC Current Measurement
40 A
Minimum Storage Temperature
-4 Degrees F
Jaw Opening
1.26 in
Batteries Included
Yes
Includes
(4) Batteries, Alligator Clips (AAC3), Back Probes (ABP3), Temperature Probe (ATT29 ), Carrying Case, Test Leads (ATL70)
Inrush Current Measurable
Yes
Diode Test
Yes
Minimum Capacitance Measurement
40 nF
Voltage Units
mV, V
Maximum Capacitance Measurement
4,000 uF
Basic DC Current Accuracy
+/-1.2% + 3dgts
Data Hold
Yes
DC Voltage Measurement Resolution
1 mV
Bar Graph Included
No
Minimum Frequency Measurement
0.5 Hz
Basic AC Voltage Accuracy
+/-2.0% + 5dgts
Elapse Time Clock
No
Current Units
uA
Jaw Detachability
Fixed
AC Response Calculation
TRMS
Resistance Measurement Accuracy
+/-1.0% + 4dgts; +/-2.0% + 4dgts
Special Features
Designed to Tackle the Essential Tests that HVAC/R Professionals Perform Everyday
Basic DC Voltage Accuracy
+/-0.5% + 4dgts
Display Type
Backlit LCD
Peak Hold
No
IP Rating
IP42
Parameters Measured
AC Current, AC Voltage, Continuity, Capacitance, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Non-Contact Voltage, Resistance, Temperature
DC Current Measurement Resolution
1 uA
Calibration Certificate Included
No Certification Included
Battery Voltage
4.5 V
Memory
Min/Max
Current Leakage Testing
No
Audible Continuity
Yes
Minimum Operating Temperature
32 Degrees F
Capacitance Measurement Resolution
4,000 uF
Thermometer Type
Type K Thermocouple
Instrument Counts
4,000
Battery Access
Yes
Thermal Imaging
No
Software Included
No
Non-Contact Voltage Detector
Yes
Time of Day Clock
No
Jaw Style
Clamp
Basic AC Current Accuracy
+/-2%
Includes Auto Sensing
No Auto Sensing Included
Maximum AC Current Measurement
400 A
Item
Digital Clamp Meter
Removable Screen
No
Auto Ranging
Yes
Resistance Measurement Resolution
0.01 ohm
Intrinsically Safe
No
Minimum Resistance Measurement
400 ohm
Minimum AC Voltage Measurement
400 mV
AC Current Measurement Resolution
400 A

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement Not Applicable, Maximum DC Current Measurement 2,000 uA, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP42, Parameters Measured AC Current, AC Voltage, Continuity, Capacitance, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Non-Contact Voltage, Resistance, Temperature, Intrinsically Safe No, Data Logging Yes
