  11. Diamond Turning Insert, Diamond, 2, VBMT, .5, Carbide

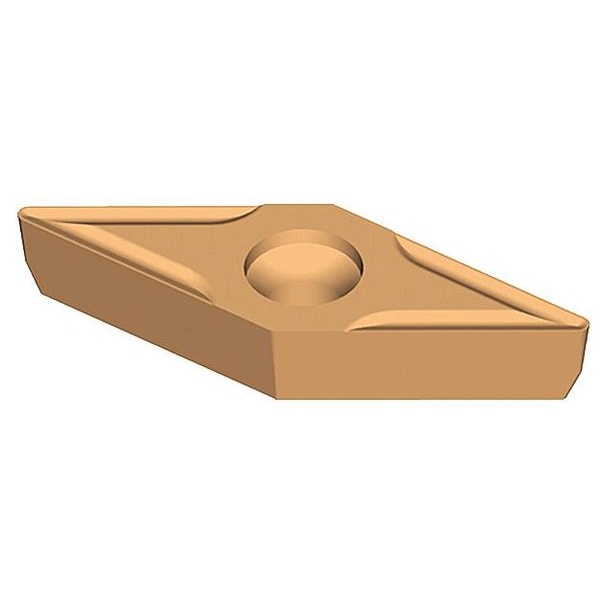

Ultra-Dex Usa Diamond Turning Insert, Diamond, 2, VBMT, .5, Carbide 913-000-536 - main

Diamond Turning Insert, Diamond, 2, VBMT, .5, Carbide

  • Mfr # 913-000-536

  • Zoro # G9675233

product price: $17.99
/ea
Sold in multiples of 10 for $179.90

Key Features

Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
2
Insert Size
21.50.5
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-000-536
Zoro #
G9675233
UPC #
-
Country of Origin
China

Dimensions

Insert Size
21.50.5
Corner Radius
.5
Insert Thickness
0.094"
Nose Radius
0.008"
Mounting Hole Dia.
0.110"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
UD52
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
110202
Stainless (M) Compatibility
Yes
Style
VBMT
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Mounting Style
Screw Lock
Relief Angle
5 Degrees
Non Ferrous (N) Compatibility
No
Coating
TiAlN
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Application
Finishing
Steel (P) Compatibility
Yes
No. of Edges
2
For Use With
SVFBR2, SVXBR2, SVJBR2
ANSI Number
VBMT 21.50.5 UD52
Super Alloy (S) Compatibility
No
Measurement System
Fractional Inch
Finish - Machining
TiAlN
Included Angle
35 Degrees
Cutting Application
Boring, Turning
Primary Material Application
Nickel, Steel, Titanium
Number of Cutting Edges
2
Secondary Material Application
Stainless Steel
Chip-Breaker Code
ZX3
Secondary Material Application ISO Code
M
Material - Machining
Carbide
ANSI Code
VBMT 21.50.5 UD52
Shape
Rhombic
Primary Material Application ISO Code
P, S
Clearance Angle
5 Degrees
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Manufacturer Grade
UD25
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code ZX3, Inscribed Circle 1/4 in, TiAlN, ANSI Code VBMT 21.50.5 UD52, Clearance Angle 5 Degrees
