  11. Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

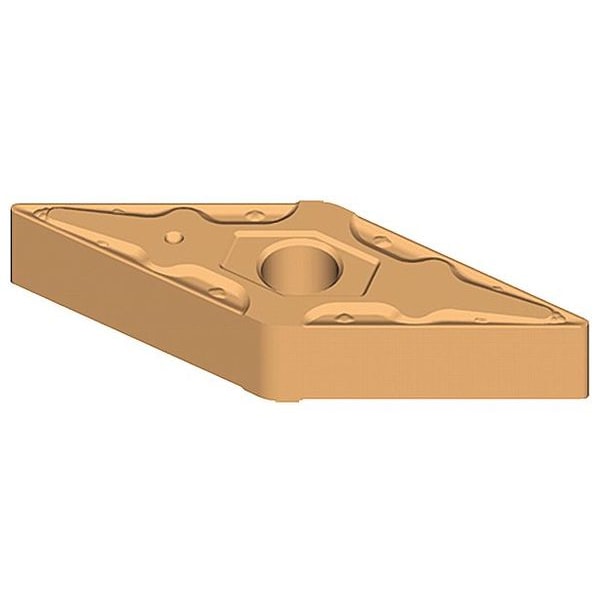

Ultra-Dex Usa Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide 913-000-556 - main

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

  • Mfr # 913-000-556

  • Zoro # G9675145

product price: $18.19
/ea
Sold in multiples of 10 for $181.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-000-556
Zoro #
G9675145
UPC #
-
Country of Origin
China

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.031"
Mounting Hole Dia.
0.150"
Insert Thickness
0.188"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
UD52
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
160408
For Use With
MVUNR/L3, MVXNR/L3
ANSI Number
VNMG 332 UD52
Non Ferrous (N) Compatibility
No
Style
VNMG
Steel (P) Compatibility
Yes
Mounting Style
Clamp and Lock Pin
Application
Roughing
Hardened (H) Compatibility
No
Coating
TiAlN
Super Alloy (S) Compatibility
No
No. of Edges
2
Relief Angle
0 Degrees
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P)
Cast Iron (K) Compatibility
No
Primary Material Application ISO Code
P, S
Measurement System
Fractional Inch
Finish - Machining
TiAlN
Insert Holding Type
Straight Hole
Primary Material Application
Nickel, Steel, Titanium
Included Angle
35 Degrees
Chip-Breaker Code
ZX2
Material - Machining
Carbide
Secondary Material Application
Stainless Steel
Manufacturer Grade
UD52
Cutting Application
Boring, Turning
ANSI Code
VNMG 332 UD52
Shape
Rhombic
Clearance Angle
0 Degrees
Number of Cutting Edges
2
Secondary Material Application ISO Code
M
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code ZX2, Inscribed Circle 3/8 in, TiAlN, ANSI Code VNMG 332 UD52, Clearance Angle 0 Degrees
