  11. Diamond Turning Insert, Diamond, 3/16 in, CDGW, .2, Carbide

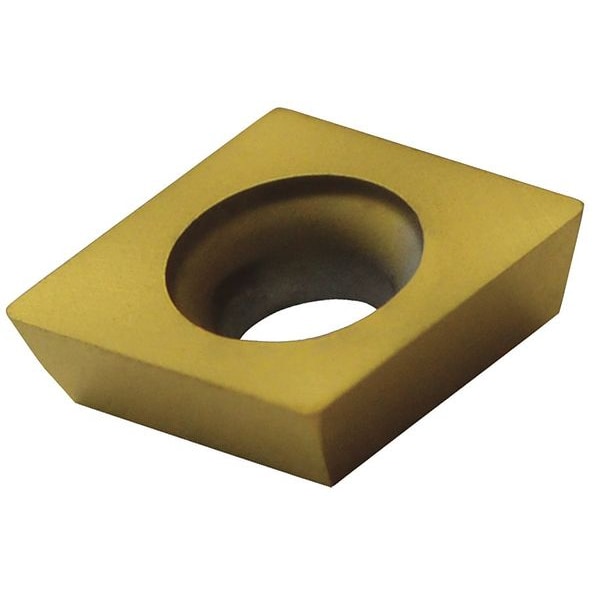

Ultra-Dex Usa Diamond Turning Insert, Diamond, 3/16 in, CDGW, .2, Carbide 913-000-143 - main

Diamond Turning Insert, Diamond, 3/16 in, CDGW, .2, Carbide

  • Mfr # 913-000-143

  • Zoro # G1963407

product price: $14.99
/ea
Sold in multiples of 10 for $149.90

Key Features

Insert Shape
Diamond
Insert Style
CDGW
Inscribed Circle
3/16 in
Insert Size
1.510
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-000-143
Zoro #
G1963407
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
1.510
Corner Radius
.2
Insert Thickness
0.063"
Nose Radius
0.004"
Mounting Hole Dia.
0.085"
Thickness
1

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CDGW
Inscribed Circle
3/16 in
Chip-Breaker
No
Grade
UD2
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
040101
Stainless (M) Compatibility
No
Mounting Style
Screw Lock
Non Ferrous (N) Compatibility
Yes
Application
Finishing
Cast Iron (K) Compatibility
No
Cutting Direction
Neutral
Coating
Uncoated
Style
CDGW
Super Alloy (S) Compatibility
No
No. of Edges
2
For Use With
SCLDR/L1.5
Hardened (H) Compatibility
No
ANSI Number
CDGW 1.510 UD2
Steel (P) Compatibility
No
Material - Machining
Carbide
Number of Cutting Edges
2
Secondary Material Application
Cast Iron, Ferrous Material
Manufacturer Grade
UD2
Shape
Rhombic
Primary Material Application
All Materials
Cutting Application
Boring, Turning
Secondary Material Application ISO Code
K, N
Included Angle
80 Degrees
Finish - Machining
Bright (Uncoated)
Clearance Angle
15 Degrees
ANSI Code
CDGW 1.510 UD2
Measurement System
Fractional Inch
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material
Carbide

Description

Diamond Turning Insert, Inscribed Circle 3/16 in, Bright (Uncoated), ANSI Code CDGW 1.510 UD2, Clearance Angle 15 Degrees
