Shop ULTRA-DEX USA

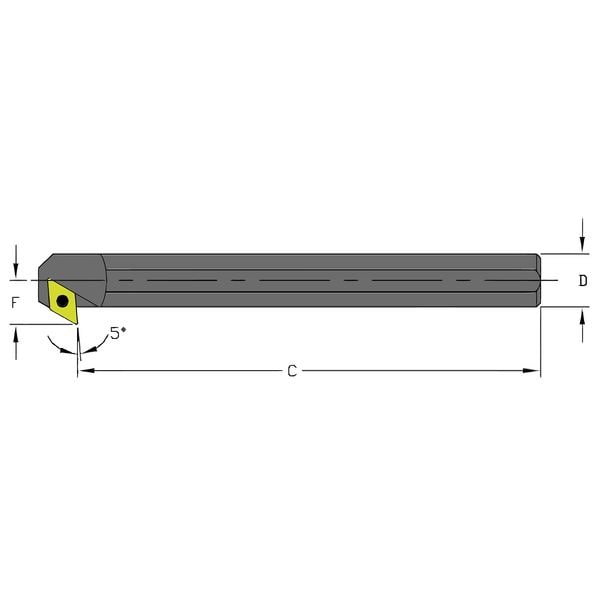

Indexable Boring Bar, S10M SDXCR2, 6 in L, High Speed Steel, 55 Degrees Diamond Insert Shape

  • Mfr # 957-000-310

  • Zoro # G9235527

product price:
$
144.99
/ea
Free Shipping & Returns

Key Features

Overall Length
6 in
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
ANSI Code
S10M SDXCR2
Mounting Style
Screw Lock
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
957-000-310
Zoro #
G9235527
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
6 in
Bar Dia.
0.625"
Insert Thickness
0.0937"
Shank Dia.
5/8 in
Insert Size
21.51
Min. Bore Dia.
0.8500 in
Wire Rope Length
6 in
Length
6 in

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
ANSI Code
S10M SDXCR2
Mounting Style
Screw Lock
Inscribed Circle
1/4"
Left/Right Hand
Right Hand
Cutting Edge Type
5 Degrees
Lead Angle
5 Degrees
Style
Solid
Min. Bore
0.850"
For Use With
DCMT 21.51
ANSI Number
S10M SDXCR2
Rake
Positive
Type
Turning
Cutting Direction
Right Hand
Coolant Fed
Non-Coolant Through
Compatible Hardware
MTS-255 Insert Screw, T-7 Key
Head Material
Steel
Insert Style
DCMT
Center to Cutting Tip
1/2 in
Insert Clearance Angle
7 Degrees
Side Cutting Edge Angle
5 Degrees
Cutting Application
Back Facing
Insert Holding Type
Screw On
Number of Inserts
1
Insert Inscribed Circle
1/4 in

Description

Indexable Boring Bar, Insert Shape 55 Degrees Diamond, Overall Length 6 in, S10M SDXCR2, 1/2 in, MTS-255 Insert Screw, T-7 Key, Non-Coolant Through, Back Facing, Right Hand
