  6. Indexable Cutting Head Unit, MH28 SDUCL3-CFT, 1-1/4 in L, Steel, 55 Degrees Diamond Insert Shape
Ultra-Dex Usa Indexable Cutting Head Unit, MH28 SDUCL3-CFT, 1-1/4 in L, Steel, 55 Degrees Diamond Insert Shape 912-000-113 - main

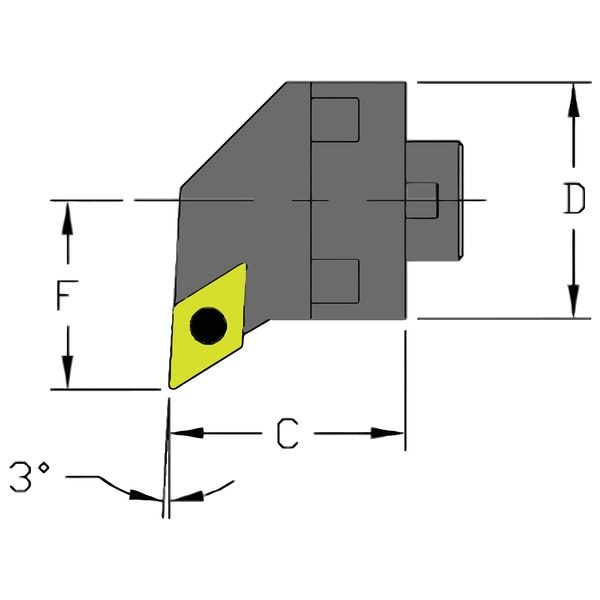

Indexable Cutting Head Unit, MH28 SDUCL3-CFT, 1-1/4 in L, Steel, 55 Degrees Diamond Insert Shape

  • Mfr # 912-000-113

  • Zoro # G9233777

product price:  $276.99
/ea
Free Shipping & Returns

Key Features

Overall Length
1-1/4 in
Shank Material
Steel
Insert Shape
55 Degrees Diamond
ANSI Code
MH28 SDUCL3-CFT
Mounting Style
Screw Lock
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
912-000-113
Zoro #
G9233777
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
1-1/4 in
Insert Thickness
0.1562"
Bar Dia.
1.750"
Insert Size
32.51
Connection Size
MH28 (1-3/4 in Head Diameter)
Min. Bore Dia.
2.1750 in

Details

Item
Indexable Cutting Head Unit
Shank Material
Steel
Insert Shape
55 Degrees Diamond
ANSI Code
MH28 SDUCL3-CFT
Mounting Style
Screw Lock
Min. Bore
2.175"
Style
Chatter-Free
For Use With
DCMT 32.51
Cutting Edge Type
-3 Degrees
Left/Right Hand
Left Hand
Rake
Positive
ANSI Number
MH28 SDUCL3-CFT
Inscribed Circle
3/8"
Lead Angle
-3 Degrees
Type
Turning
Cutting Direction
Left Hand
Coolant Fed
Coolant Through
Insert Clearance Angle
7 Degrees
Compatible Hardware
Insert Screw MTS-35, Key T-15
Insert Inscribed Circle
3/8 in
Insert Holding Type
Screw On
Insert Style
DCMT
Toolholder Style
SDUC
Cutting Application
Boring
Hardware Required
Insert Screw MTS-35, Key T-15
Side Cutting Edge Angle
-3 Degrees
Center to Cutting Tip
1-1/4 in

Description

Indexable Cutting Head Unit, SDUC, Left Hand, Center to Cutting Tip 1-1/4 in
