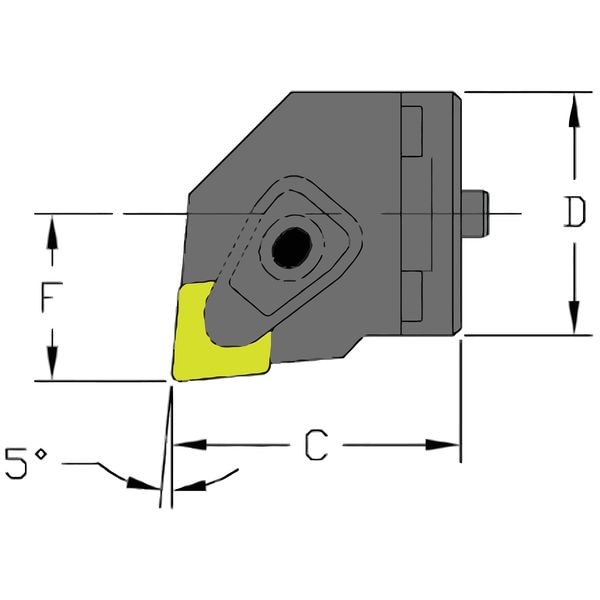

Ultra-Dex Usa Indexable Cutting Head Unit, SH20 DCLNR4, 1.4960 in L, Steel, 80 Degrees Diamond Insert Shape 912-000-218 - main

Indexable Cutting Head Unit, SH20 DCLNR4, 1.4960 in L, Steel, 80 Degrees Diamond Insert Shape

  • Mfr # 912-000-218

  • Zoro # G9237383

product price:  $339.99
/ea
Free Shipping & Returns

Key Features

Overall Length
1.4960 in
Shank Material
Steel
Insert Shape
80 Degrees Diamond
ANSI Code
SH20 DCLNR4
Lead Angle
-5 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
912-000-218
Zoro #
G9237383
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
1.4960 in
Insert Thickness
0.1875"
Bar Dia.
1.260"
Insert Size
432
Min. Bore Dia.
1.5750 in
Connection Size
32.00mm

Details

Item
Indexable Cutting Head Unit
Shank Material
Steel
Insert Shape
80 Degrees Diamond
ANSI Code
SH20 DCLNR4
Lead Angle
-5 Degrees
Type
Turning
Min. Bore
1.575"
ANSI Number
SH20 DCLNR4
Left/Right Hand
Right Hand
Mounting Style
Pullback Clamp
Inscribed Circle
1/2"
For Use With
CNMG 432
Rake
Negative
Cutting Edge Type
-5 Degrees
Style
Chatter-Free
Cutting Direction
Right Hand
Cutting Application
Boring
Insert Inscribed Circle
1/2 in
Center to Cutting Tip
0.8660 in
Side Cutting Edge Angle
-5 Degrees
Number of Coolant Holes
1
Coolant Fed
Coolant Through
Insert Holding Type
Pullback Clamp
Insert Style
CNMG
Toolholder Style
DCLN
Insert Clearance Angle
0 Degrees
Compatible Hardware
Clamp Assembly PB4-CA, Shim Screw PB4-SS, Shim Seat ICSN-433
Hardware Required
Clamp Assembly PB4-CA, Shim Screw PB4-SS, Shim Seat ICSN-433

Description

Indexable Cutting Head Unit, DCLN, Right Hand, Center to Cutting Tip 0.8660 in
