  11. Gate Valve, 1-1/4 In., Flange

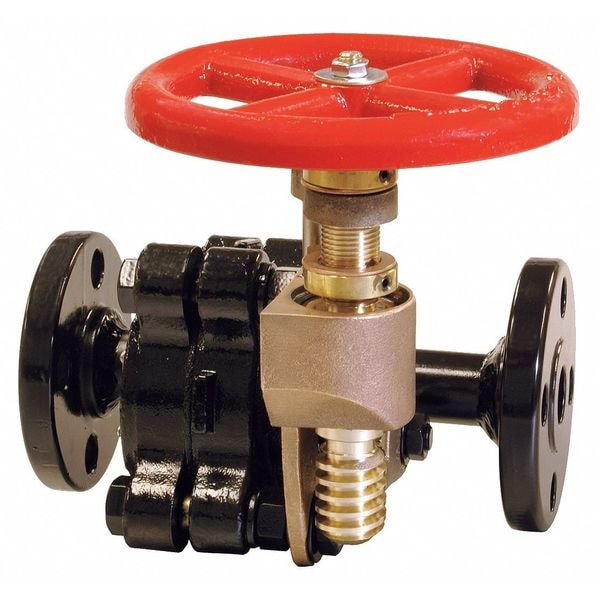

United Brass Works Gate Valve, 1-1/4 In., Flange 314012 - main

Gate Valve, 1-1/4 In., Flange

  • Mfr # 314012

  • Zoro # G5065584

product price: $3,741.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/4"
Connection Type
Flanged
Body Material
Carbon Steel
Stem Material
410 Stainless Steel
Inlet to Outlet Length
9-45/64"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
314012
Zoro #
G5065584
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1 1/4"
Inlet to Outlet Length
9-45/64"
Pipe Size - Valves
1 1/4"
Overall Length
9.7 in
Connection Size - Side 2
1 1/4 in
Handle Height
8.09 in
Nominal Valve Size
1 1/4 in
Connection Size - Side 1
1 1/4 in

Details

Connection Type
Flanged
Body Material
Carbon Steel
Item
Gate Valve
Stem Material
410 Stainless Steel
Standards
ANSI B16.41, ASME Boiler and Pressure Vessel COD Section 1 PG 42.1.15
Wedge Material
Stainless Steel
Valve Class
Class 300
Valve Max. Fluid Temp.
500 Degrees F
Handle Material
Ductile Cast Iron
Max. Water Pressure - CWP
750 psi
Top of Handle to Inlet Center
8-3/32"
Max. Cold Working Pressure - CWP
750 psi
Body Material - Valves
Carbon Steel
Handle Type
Hand Wheel
Valve Stem Type
Non-Rising
Bonnet Style
Bolted
Seal Material
Graphite
Stem Type
Non-Rising
Seat Material
Stainless Steel
Maximum Pressure - Operating
750 psi
Wedge Style
Solid
Bonnet Material
Carbon Steel
Connection Type - Side 2
Flange
Operating Temperature - Minimum
100 Degrees F
Connection Type - Side 1
Flange
Maximum Pressure - Steam
650 psi
For Media
Gas, Oil, Steam, Water
ANSI Flange Class
Class 300
Operating Temperature - Maximum
500 Degrees F
Number of Flange Bolt Holes
4

Description

Gate Valve, For Media Gas, Oil, Steam, Water, Body Material Carbon Steel, Nominal Valve Size 1 1/4 in, ANSI Flange Class Class 300, Maximum Pressure - Operating 750 psi, Maximum Pressure - Steam 650 psi, Coefficient of Volume (Cv) Not Applicable, Stem Type Non-Rising, Stem Material Stainless Steel, Wedge Style Solid, Wedge Material Stainless Steel, Seat Material Stainless Steel, Seal Material Graphite, Handle Type Wheel, Bonnet Material Carbon Steel, Bonnet Style Bolted

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
