  11. Gate Valve, 1-1/4 In., FNPT

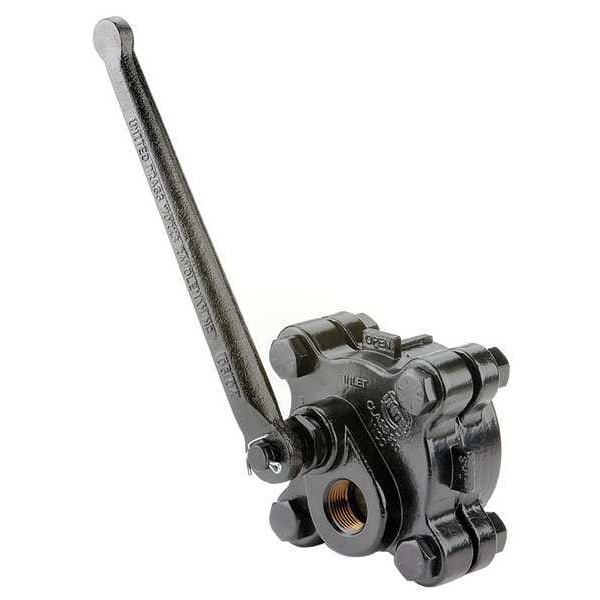

United Brass Works Gate Valve, 1-1/4 In., FNPT 296958 - main

Gate Valve, 1-1/4 In., FNPT

  • Mfr # 296958

  • Zoro # G5065462

product price: $909.63
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/4"
Connection Type
FNPT
Body Material
Carbon Steel
Inlet to Outlet Length
3 51/64 in
Pipe Size - Valves
1 1/4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
296958
Zoro #
G5065462
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1 1/4"
Inlet to Outlet Length
3 51/64 in
Pipe Size - Valves
1 1/4"
Overall Length
5.32 in
Connection Size - Side 2
1 1/4 in
Connection Size - Side 1
1 1/4 in
Nominal Valve Size
1 1/4 in
Handle Height
10 in
Handle Length
10 in

Details

Connection Type
FNPT
Body Material
Carbon Steel
Item
Gate Valve
Stem Material
410 Stainless Steel
Valve Max. Fluid Temp.
500 Degrees F
Top of Handle to Inlet Center
10 in
Body Material - Valves
Carbon Steel
Max. Water Pressure - CWP
750 psi
Max. Cold Working Pressure - CWP
750 psi
Standards
ANSI B16.35, ASME Boiler and Pressure Vessel COD Section 1 PG 42.1.12
Valve Class
Class 300
Wedge Material
Stainless Steel
Handle Type
Lever
Bonnet Style
Bolted
Stem Type
Non-Rising
Seal Material
Graphite
Connection Gender - Side 1
Female
Bonnet Material
Steel
Connection Gender - Side 2
Female
Connection Type - Side 2
NPT
Maximum Pressure - Operating
750 psi
Maximum Pressure - Steam
650 psi
Operating Temperature - Minimum
100 Degrees F
Wedge Style
Solid
Seat Material
Stainless Steel
For Media
Water
Connection Type - Side 1
NPT
Operating Temperature - Maximum
500 Degrees F

Description

Gate Valve, For Media Water, Body Material Steel, Nominal Valve Size 1 1/4 in, ANSI Flange Class Not Applicable, Maximum Pressure - Operating 750 psi, Maximum Pressure - Steam 650 psi, Coefficient of Volume (Cv) Not Applicable, Stem Type Non-Rising, Stem Material 410 Stainless Steel, Wedge Style Solid, Wedge Material Stainless Steel, Seat Material Stainless Steel, Seal Material Graphite, Handle Type Lever, Bonnet Material Steel, Bonnet Style Bolted, Connection Gender - Side 1 Female

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
