Shop UNITED ELECTRIC

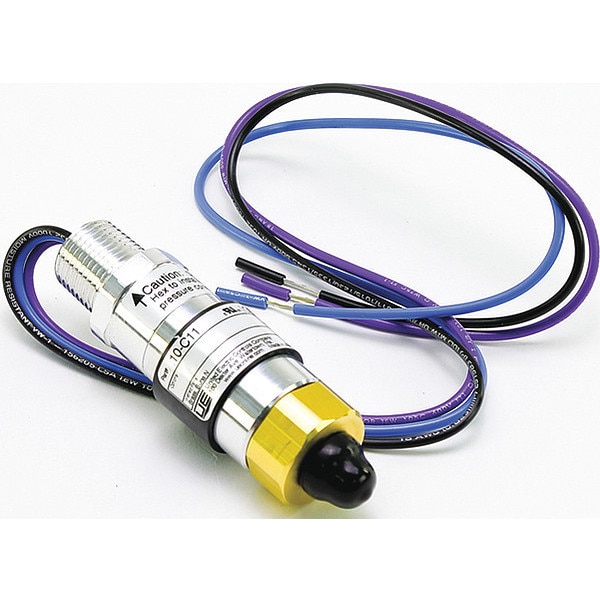

Pressure Switch

  • Mfr # 10-C11

  • Zoro # G7765165

product price:
$
210.99
/ea
Free Shipping & Returns

Key Features

Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 125V DC, 12V DC, 24V DC, 250V AC, 30V DC, 6V DC
Product Type
Pressure Switch
Overall Diameter
1 1/4 in
Maximum Operating Temperature
160 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10-C11
Zoro #
G7765165
UPC #
-
Country of Origin
United States

Dimensions

Overall Diameter
1 1/4 in
Overall Height
4 3/16 in
Sample Line Connection Size
1/8 in

Details

Fits Brand
UNITED ELECTRIC
Item
Pressure Switch
Input Voltage
125V AC, 125V DC, 12V DC, 24V DC, 250V AC, 30V DC, 6V DC
Product Type
Pressure Switch
Maximum Operating Temperature
160 Degrees F
Housing Type
NEMA-4 Enclosure
Maximum Pressure Rating
1,500 psi
Pressure Setpoint Type
Adjustable
Contact Form
SPDT
Housing Material
Aluminum
Electrical Rating
0.25 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 mA @ 24V DC, 2 mA @ 12V DC, 3 A @ 30V DC Inductive, 5 A @ 125/250V AC Inductive, 5 A @ 125V AC Resistive, 5 A @ 30V DC Resistive, 5 mA @ 6V DC
Minimum Operating Temperature
0 Degrees F
Minimum Pressure Setting
10 psi
Electrical Connection Type
Hardwired
Weight
0.41 lb
Maximum Pressure Setting
15 psi
Standards
ATEX Directive (2014/34/EU), CE, CUL, Low Voltage Directive (LVD) (2014/35/EU), Pressure - UL 508, CSA C22.2 No. 14, File #E42272, Pressure Equipment Directive (PED) (2014/68/EU), UL Listed
Sample Line Connector Type
NPT
Number of Switches
1

Description

Pressure Switch, Contact Form SPDT, Electrical Connection Type Hardwired, Electrical Rating 0.25 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 mA @ 24V DC, 2 mA @ 12V DC, 3 A @ 30V DC Inductive, 5 A @ 125/250V AC Inductive, 5 A @ 125V AC Resistive, 5 A @ 30V DC Resistive, 5 mA @ 6V DC, Housing Material Aluminum, Housing Type NEMA-4 Enclosure, Input Voltage 125V AC, 125V DC, 12V DC, 24V DC, 250V AC, 30V DC, 6V DC, Maximum Operating Temperature 160 Degrees F
