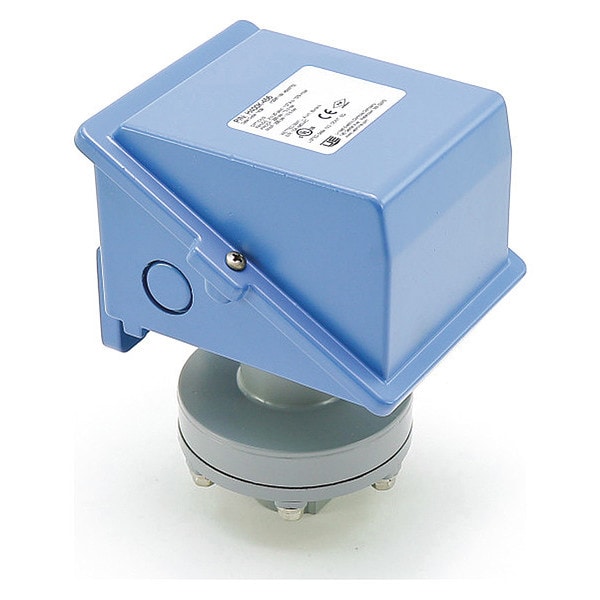

Pressure Switch
Mfr # H400K-456
Zoro # G7765199
product price:Â
$
842.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
Product Type
Pressure Switch
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
160 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- H400K-456
- Zoro #
- G7765199
- UPC #
- -
- Country of Origin
- United States
- Item
- Pressure Switch
- Fits Brand
- UNITED ELECTRIC
- Input Voltage
- 125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
- Product Type
- Pressure Switch
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 160 Degrees F
- Pressure Setpoint Type
- Adjustable
- Housing Material
- Aluminum
- Sample Line Connector Type
- NPT
- Maximum Pressure Setting
- 20 psi
- Contact Form
- SPDT
- Number of Switches
- 1
- Weight
- 7.5 lb
- Housing Type
- NEMA-4 Enclosure
- Mounting Hole Center to Center Distance
- 2 1/2 in
- Electrical Rating
- 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive
- Standards
- ATEX Directive (2014/34/EU), CE, CUL, cULus, FM, Pressure - UL 508, CSA C22.2 No. 14, File #E42272, Temperature - UL 873, CSA C22.2 No. 24, File #E10667, UL Listed
- Maximum Pressure Rating
- 225 psi
- Minimum Pressure Setting
- 2 psi
- Housing Material Finish
- Epoxy Coated
- Application
- Air Compressor Control, Pump Control
Description
Pressure Switch, Application Air Compressor Control, Pump Control, Contact Form SPDT, Electrical Rating 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive, Housing Material Aluminum, Housing Material Finish Epoxy Coated, Housing Type NEMA-4 Enclosure, Input Voltage 125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 225 psi
