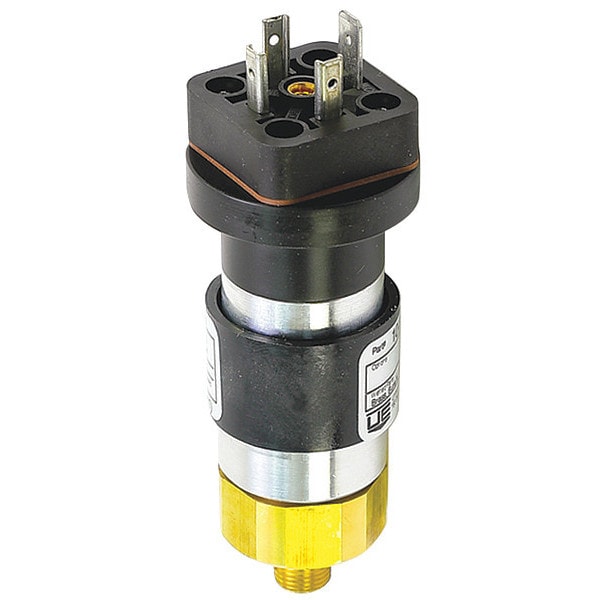

Pressure Switch
Mfr # 10F11
Zoro # G7765339
product price: $261.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
UNITED ELECTRIC
Features
Buna-N Diaphragm and O-Ring with 1/8 in NPT (Male) Brass Pressure Connection
Type
NEMA 4, 4 Terminal DIN Connector, Adjustable Set Point 10 to 150 psi, Over Range Pressure 1500 psi
Input Voltage
125V AC, 125V DC, 12V DC, 24V DC, 250V AC, 30V DC, 6V DC
Product Type
Pressure Switch
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
10F11
Zoro #
G7765339
UPC #
-
Country of Origin
United States
Dimensions
Sample Line Connection Size
1/8 in
Overall Height
4 1/8 in
Overall Width
1 1/8 in
Details
Fits Brand
UNITED ELECTRIC
Features
Buna-N Diaphragm and O-Ring with 1/8 in NPT (Male) Brass Pressure Connection
Item
Pressure Switch
Type
NEMA 4, 4 Terminal DIN Connector, Adjustable Set Point 10 to 150 psi, Over Range Pressure 1500 psi
Input Voltage
125V AC, 125V DC, 12V DC, 24V DC, 250V AC, 30V DC, 6V DC
Product Type
Pressure Switch
Pressure Setpoint Type
Adjustable
Maximum Operating Temperature
160 Degrees F
Weight
0.41 lb
Contact Form
SPDT
Maximum Pressure Rating
1,500 psi
Standards
ATEX Directive (2014/34/EU), CE, CUL, Low Voltage Directive (LVD) (2014/35/EU), Pressure - UL 508, CSA C22.2 No. 14, File #E42272, Pressure Equipment Directive (PED) (2014/68/EU), UL Listed
Maximum Pressure Setting
15 psi
Electrical Rating
0.25 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 mA @ 24V DC, 2 mA @ 12V DC, 3 A @ 30V DC Inductive, 5 A @ 125/250V AC Inductive, 5 A @ 125V AC Resistive, 5 A @ 30V DC Resistive, 5 mA @ 6V DC
IP Rating
IP65
Sample Line Connector Type
NPT
Minimum Operating Temperature
0 Degrees F
Number of Switches
1
Minimum Pressure Setting
10 psi
Housing Material
Aluminum
Description
Pressure Switch, Contact Form SPDT, Electrical Rating 0.25 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 mA @ 24V DC, 2 mA @ 12V DC, 3 A @ 30V DC Inductive, 5 A @ 125/250V AC Inductive, 5 A @ 125V AC Resistive, 5 A @ 30V DC Resistive, 5 mA @ 6V DC, Housing Material Aluminum, IP Rating IP65, Input Voltage 125V AC, 125V DC, 12V DC, 24V DC, 250V AC, 30V DC, 6V DC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 1,500 psi, Maximum Pressure Setting 15 psi
