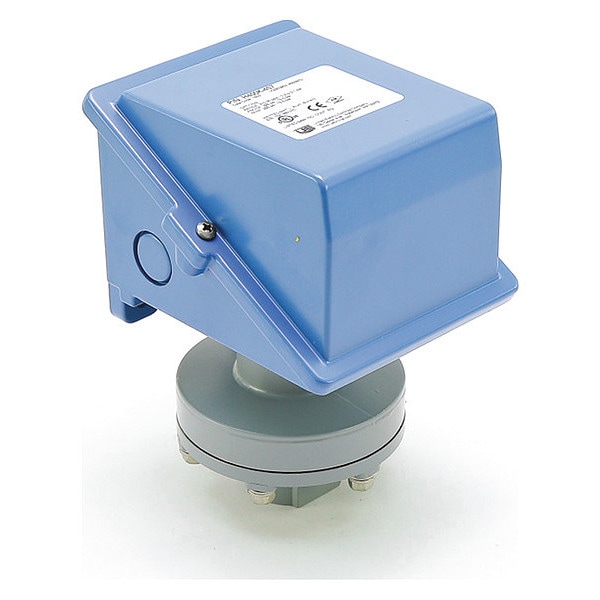

Pressure Switch
Mfr # H400K-457
Zoro # G7765445
product price:Â
$
749.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
Product Type
Pressure Switch
Application
Air Compressor Control, Pump Control
Minimum Pressure Setting
3 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- H400K-457
- Zoro #
- G7765445
- UPC #
- -
- Country of Origin
- United States
- Item
- Pressure Switch
- Fits Brand
- UNITED ELECTRIC
- Input Voltage
- 125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
- Product Type
- Pressure Switch
- Application
- Air Compressor Control, Pump Control
- Minimum Pressure Setting
- 3 psi
- Contact Form
- SPDT
- Weight
- 7.5 lb
- Mounting Hole Center to Center Distance
- 2 1/2 in
- Number of Switches
- 1
- Electrical Rating
- 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive
- Maximum Pressure Setting
- 30 psi
- Minimum Operating Temperature
- -40 Degrees F
- Pressure Setpoint Type
- Adjustable
- Maximum Operating Temperature
- 160 Degrees F
- Housing Material Finish
- Epoxy Coated
- Standards
- ATEX Directive (2014/34/EU), CE, CUL, cULus, FM, Pressure - UL 508, CSA C22.2 No. 14, File #E42272, Temperature - UL 873, CSA C22.2 No. 24, File #E10667, UL Listed
- Housing Type
- NEMA-4 Enclosure
- Sample Line Connector Type
- NPT
- Maximum Pressure Rating
- 225 psi
- Housing Material
- Aluminum
Description
Pressure Switch, Application Air Compressor Control, Pump Control, Contact Form SPDT, Electrical Rating 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive, Housing Material Aluminum, Housing Material Finish Epoxy Coated, Housing Type NEMA-4 Enclosure, Input Voltage 125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 225 psi
