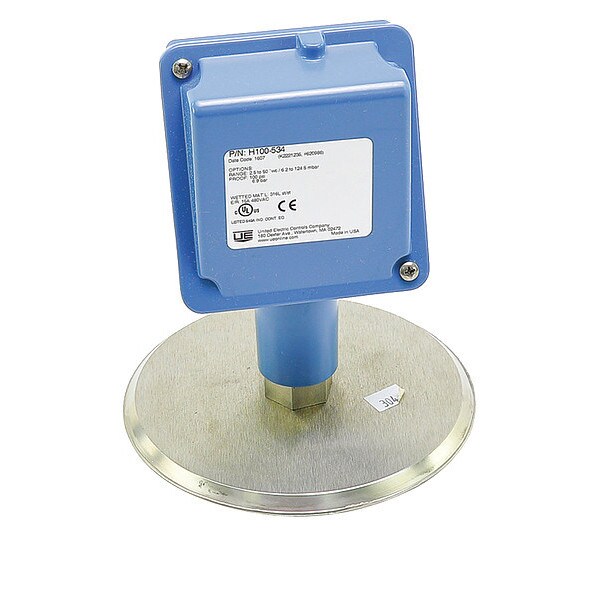

Pressure Switch
Mfr # H100-534
Zoro # G7765278
product price: $1,230.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 24V DC, 250V AC, 30V DC, 480V AC
Product Type
Pressure Switch
Maximum Pressure Rating
50 psi
Mounting Hole Center to Center Distance
2 3/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
H100-534
Zoro #
G7765278
UPC #
-
Country of Origin
United States
Dimensions
Overall Width
4 in
Mounting Hole Diameter
1/4 in
Sample Line Connection Size
1/2 in
Overall Height
8 in
Overall Depth
2 3/8 in
Details
Fits Brand
UNITED ELECTRIC
Item
Pressure Switch
Input Voltage
125V AC, 24V DC, 250V AC, 30V DC, 480V AC
Product Type
Pressure Switch
Maximum Pressure Rating
50 psi
Mounting Hole Center to Center Distance
2 3/4 in
Maximum Pressure Setting
50 in wc
Number of Switches
1
Electrical Rating
0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive
Pressure Setpoint Type
Adjustable
Minimum Operating Temperature
0 Degrees F
Standards
SIL 2 Certified (SIL 3 Capable)
Minimum Pressure Setting
2.5 in wc
IP Rating
IP65
Sample Line Connector Type
NPT
Contact Form
SPDT
Maximum Operating Temperature
160 Degrees F
Application
Air Compressor Control, Pump Control
Weight
6 lb
Description
Pressure Switch, Application Air Compressor Control, Pump Control, Contact Form SPDT, Electrical Rating 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive, IP Rating IP65, Input Voltage 125V AC, 24V DC, 250V AC, 30V DC, 480V AC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 50 psi, Maximum Pressure Setting 50 in wc, Minimum Operating Temperature 0 Degrees F
