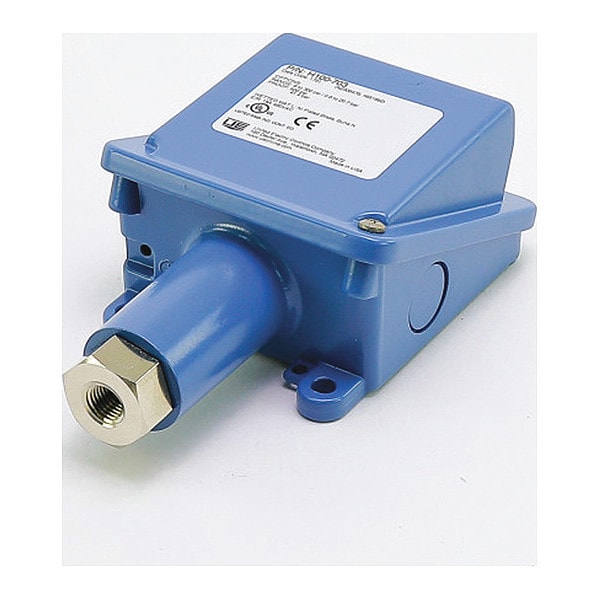

Pressure Switch
- Mfr # H100-703
- Zoro # G7765269
product price:Â
$
342.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 24V DC, 250V AC, 30V DC, 480V AC
Features
Range 9-300
Product Type
Pressure Switch
Number of Switches
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- H100-703
- Zoro #
- G7765269
- UPC #
- -
- Country of Origin
- United States
- Item
- Pressure Switch
- Fits Brand
- UNITED ELECTRIC
- Input Voltage
- 125V AC, 24V DC, 250V AC, 30V DC, 480V AC
- Features
- Range 9-300
- Product Type
- Pressure Switch
- Number of Switches
- 1
- Sample Line Connector Type
- NPT
- IP Rating
- IP65
- Minimum Operating Temperature
- 0 Degrees F
- Maximum Operating Temperature
- 160 Degrees F
- Weight
- 2 lb
- Electrical Rating
- 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive
- Minimum Pressure Setting
- 9 in wc
- Maximum Pressure Setting
- 300 in wc
- Maximum Pressure Rating
- 500 psi
- Application
- Air Compressor Control, Pump Control
- Contact Form
- SPDT
- Standards
- SIL 2 Certified (SIL 3 Capable)
- Pressure Setpoint Type
- Adjustable
- Mounting Hole Center to Center Distance
- 2 3/4 in
Dimensions
- Mounting Hole Diameter
- 1/4 in
- Overall Depth
- 2 3/8 in
- Overall Height
- 6 5/8 in
- Sample Line Connection Size
- 1/4 in
- Overall Width
- 4 in
Description
Pressure Switch, Application Air Compressor Control, Pump Control, Contact Form SPDT, Electrical Rating 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive, IP Rating IP65, Input Voltage 125V AC, 24V DC, 250V AC, 30V DC, 480V AC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 500 psi, Maximum Pressure Setting 300 in wc, Minimum Operating Temperature 0 Degrees F
