Shop UNITED ELECTRIC

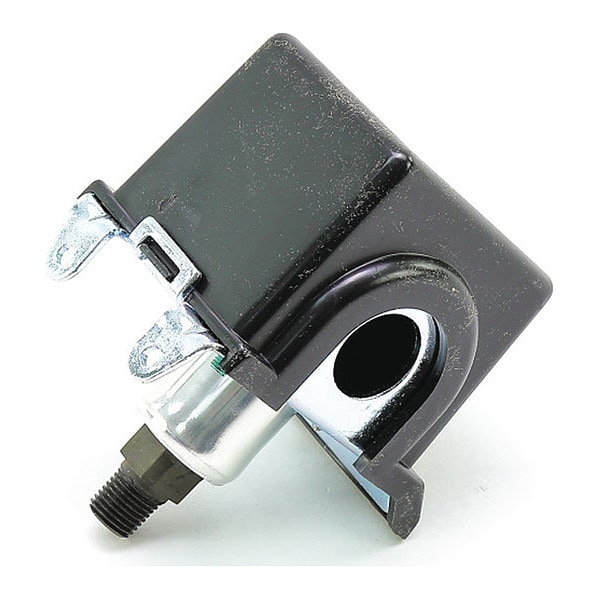

Pressure Switch

  • Mfr # H54-24

  • Zoro # G7765156

product price:
$
335.99
/ea
Free Shipping & Returns

Key Features

Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
Product Type
Pressure Switch
Contact Form
SPDT
Mounting Hole Center to Center Distance
1 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H54-24
Zoro #
G7765156
UPC #
-
Country of Origin
United States
Item
Pressure Switch
Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
Product Type
Pressure Switch
Contact Form
SPDT
Mounting Hole Center to Center Distance
1 3/4 in
Housing Material Finish
Black
Sample Line Connector Type
NPT
Maximum Pressure Setting
30 psi
Minimum Pressure Setting
3 psi
Pressure Setpoint Type
Adjustable
Application
Heating
Electrical Rating
0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive
Standards
CE, CUL, cULus Type J54, J54A, H54, cURus H54S, cURus J54AS, cURus J54S, Low Voltage Directive (LVD) (2006/95/EC), Pressure - UL 508, CSA C22.2 No. 14, File #E42272, Pressure Equipment Directive (PED) (97/23/EC), Temperature - UL 873, CSA C22.2 No. 24, File #E10667
Housing Type
NEMA-1 Enclosure
Weight
0.75 lb
Number of Switches
1
Maximum Pressure Rating
50 psi
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
160 Degrees F
Electrical Connection Type
Screw Terminals

Description

Pressure Switch, Application Heating, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive, Housing Material Finish Black, Housing Type NEMA-1 Enclosure, Input Voltage 125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 50 psi
