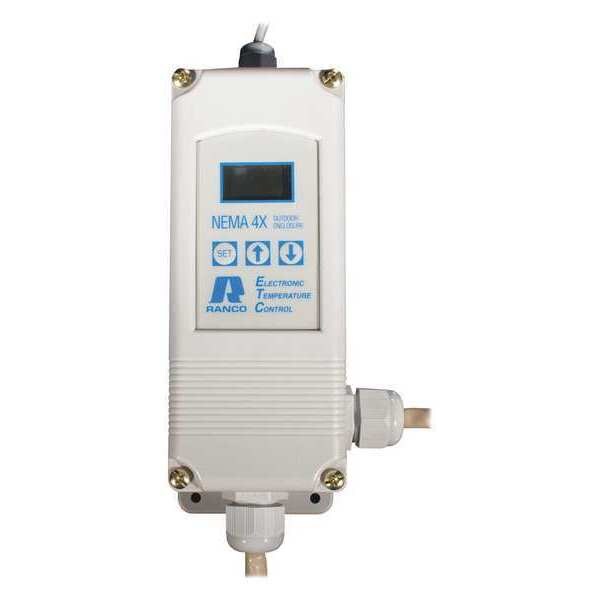

Temperature Controller, 6-17/32 in. L

  • Mfr # HE-C-01
  • Zoro # G4312850
product price:
$
575.99
/ea
Free Shipping & Returns

Key Features

Length
6 17/32 in
Width
2.7 in
For Use With
FPV1212, FPV1218, FPV1224, FPV1806, FPV1812, FPV1818, FPV1824, FPV2406, FPV2412, FPV2418, FPV2424, FPV3006, FPV3012, FPV3018, FPV3024, FPV3606, FPV3612, FPV3618, FPV3624, FPV4206, FPV4212, FPV4218, FPV4224, FPV4806, FPV4812, FPV4818, FPV4824, FPV5406, FPV5412, FPV5418, FPV5424, FPV6006, FPV6012, FPV6018, FPV6024, FPW1206, FPW1212, FPW1218, FPW1224, FPW1806, FPW1812, FPW1818, FPW1824, FPW2406, FPW2412, FPW2418, FPW2424, FPW3006, FPW3012, FPW3018, FPW3024, FPW3606, FPW3612, FPW3618, FPW3624, FPW4206, FPW4212, FPW4218, FPW4224, FPW4806, FPW4812, FPW4818, FPW4824, FPW6006, FPW6012, FPW6018,FPW6024, Mfr. No. FPV1206
Differential Range
-20 Degrees F to 140 Degrees F
For Location
Outdoor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HE-C-01
Zoro #
G4312850
UPC #
856736006904
Country of Origin
United States
Item
Temperature Controller
For Use With
FPV1212, FPV1218, FPV1224, FPV1806, FPV1812, FPV1818, FPV1824, FPV2406, FPV2412, FPV2418, FPV2424, FPV3006, FPV3012, FPV3018, FPV3024, FPV3606, FPV3612, FPV3618, FPV3624, FPV4206, FPV4212, FPV4218, FPV4224, FPV4806, FPV4812, FPV4818, FPV4824, FPV5406, FPV5412, FPV5418, FPV5424, FPV6006, FPV6012, FPV6018, FPV6024, FPW1206, FPW1212, FPW1218, FPW1224, FPW1806, FPW1812, FPW1818, FPW1824, FPW2406, FPW2412, FPW2418, FPW2424, FPW3006, FPW3012, FPW3018, FPW3024, FPW3606, FPW3612, FPW3618, FPW3624, FPW4206, FPW4212, FPW4218, FPW4224, FPW4806, FPW4812, FPW4818, FPW4824, FPW6006, FPW6012, FPW6018,FPW6024, Mfr. No. FPV1206
Differential Range
-20 Degrees F to 140 Degrees F
For Location
Outdoor
Operating Voltage
120V AC; 208/240V AC
Gasket Type
Temperature Controller
Color
Tan
Material
Steel
NEMA Enclosure Rating
4X
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-20 Degrees F
Voltage
120V AC; 208/240V AC
Application
Bulk Milk Coolers, Cooling Towers, Refrigerated Storage, Trace Heating, Unit Heaters, Ventilation Fan Cycling
Compatible Manufacturer Part Number
Features
Constant Wattage Heating Cable, LCD Readout of Sensor Temperature, Control Settings, Relay Status, and Onboard Diagnostics, Lockout Switch to Prevent Tampering by Unauthorized Personnel, Rated Watertight, Remote Temperature Sensing up to 400 ft, Simple Keypad Programming of Set Point Temperature, Differential, and Cooling/Heating Modes, SPDT Output Relay, User selectable Fahrenheit/Celsius Scales, Wide Set point Temperature Range (-30 Degrees F to 220 Degrees F) and Differential Adjustment (1 Degrees F to 30 Degrees F)
Standards
Class IV813 02, CSA Certified, File LR68340, Guide XAPX, NEC 547, UL Listed File E94419
Product Type
Temperature Controller

Dimensions

Length
6 17/32 in
Width
2.7 in
Thickness
2.5 in
Overall Length
6 in
Overall Width
2.7 in
Overall Depth
2.48 in
Overall Height
6.52 in
Height
6.52 in

Description

Temperature Controller, Thickness 2.5 in, Color Tan, Operating Voltage 120V AC; 208/240V AC, Gasket Type Temperature Controller, Material Steel, Overall Length 6 in, Cable Length 6 in, Temperature Control Range -30 Degrees F to 220 Degrees F, Standards Class IV813 02, CSA Certified, File LR68340, Guide XAPX, NEC 547, UL Listed File E94419, Application Bulk Milk Coolers, Cooling Towers, Refrigerated Storage, Trace Heating, Unit Heaters, Ventilation Fan Cycling
