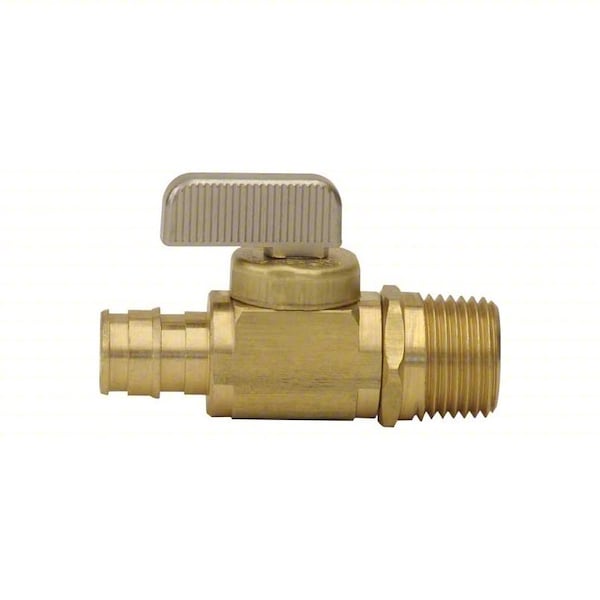

Uponor Manual 2-Way Ball Valve LF4795050 - main

Manual 2-Way Ball Valve

  • Mfr # LF4795050

  • Zoro # G712166039

product price: $24.39
/ea

Key Features

Ball Material
Chrome-Plated Brass
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LF4795050
Zoro #
G712166039
UPC #
30673372232310
Country of Origin
Italy

Dimensions

Pipe Size
1/2 in
Overall Length
2.46 in
Connection Size - Side 2
1/2 in
Handle Height
1 in
Handle Length
0.88 in
Connection Size - Side 1
1/2 in
Ball Opening Size
0.39 in

Details

Ball Material
Chrome-Plated Brass
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
For Media
Hot-Water
Connection Type
PEX x NPT
Item
Manual Two-Way Ball Valve
Stem Type
Blowout Resistant
Max. Pressure
250 PSI
Seat Material
PTFE
Seal Material
EPDM
Handle Material
Zinc-Plated Steel
Special Features
Short Handle
Body Material
Brass
Standards
ASME A112.18.1, ASTM F1960, ASTM F877, CSA B125, CSA B137.5, NSF-14, NSF-372, NSF-61
Stem Material
Brass
Handle Type
Lever
NSF Certifications for Food and Drinking Water
NSF 61
Handle - Locking
Non-Locking
Connection Gender - Side 2
Male
Vented Ball Valve
Non-Vented
Maximum Pressure - Steam
Not Rated
Color - Valve Body
Brass
Coefficient of Volume (Cv)
3.9
Operating Temperature - Maximum
200 Degrees F

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Hot-Water, Valve Construction One-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Applicable, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port, Handle - Locking Non-Locking

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
