Shop UPONOR

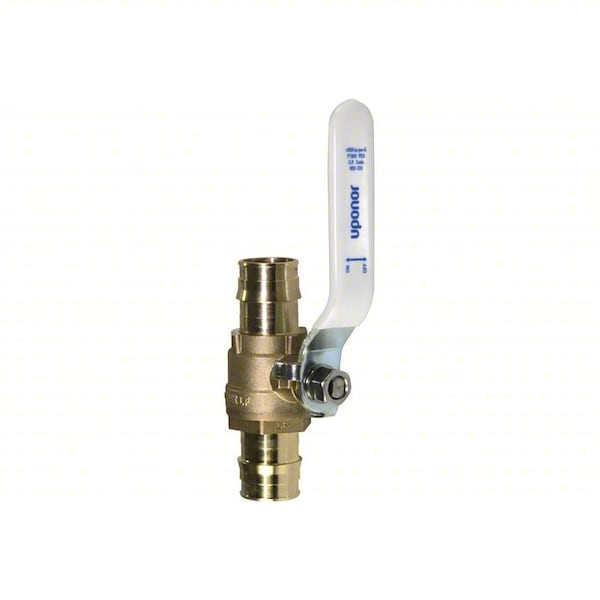

Manual 2-Way Ball Valve

  • Mfr # LFC4822020SS

  • Zoro # G512166031

product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Stainless Steel
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LFC4822020SS
Zoro #
G512166031
UPC #
673372660907
Country of Origin
China

Dimensions

Pipe Size
2 in
Overall Length
6.71 in
Connection Size - Side 1
2 in
Handle Length
5.58 in
Connection Size - Side 2
2 in
Handle Height
3.34 in
Ball Opening Size
1.6 in

Details

Ball Material
Stainless Steel
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Hot-Water
Connection Type
PEX x PEX
Item
Manual Two-Way Ball Valve
Stem Material
Stainless Steel
Standards
ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI 359, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
Handle Material
Zinc-Plated Steel
Seat Material
PTFE
Handle Type
Lever
Max. Pressure
250 PSI
Seal Material
EPDM
Stem Type
Blowout Resistant
Body Material
Brass
Operating Temperature - Maximum
200 Degrees F
Coefficient of Volume (Cv)
139.1
Handle - Locking
Non-Locking
NSF Certifications for Food and Drinking Water
NSF 61
Vented Ball Valve
Non-Vented
Maximum Pressure - Steam
Not Rated
Color - Valve Body
Brass
Color - Valve Handle
White

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Hot-Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Applicable, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating Not Applicable, Ball Material Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
