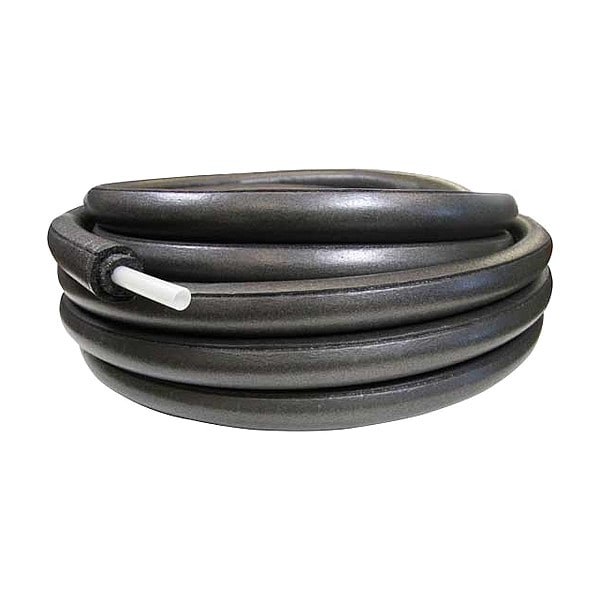

Pre-Insulated AquaPEX Tubing, 100 ft L
- Mfr # F6150750
- Zoro # G512471586
product price:Â
$
550.99
/ea
Additional $115.00 delivery surcharge applies per item.
Key Features
System of Measurement
Inch
Tube Insulation Thickness
1 in
Standards
ASTM E814/ULC S115, ASTM F1960, ASTM F2023, ASTM F876, ASTM F877, CSA B137.5, CSA B214, NSF-14, NSF-61, UL 1821, ULC S101
Maximum Operating Pressure
80 psi
Features
Manufactured-Sealed Seams Running the Entire Length of the Pipe for Added Convenience and System Performance
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- F6150750
- Zoro #
- G512471586
- UPC #
- 673372485272
- Country of Origin
- United States
Dimensions
- Tube Insulation Thickness
- 1 in
- Overall Length
- 100 ft
- Inside Diameter
- 43/64 in
- Outside Diameter
- 7/8 in
- PEX Copper Tube Size
- 3/4 in
- Wire Rope Length
- 100 ft
- Length
- 100 ft
Details
- Item
- Pre-Insulated AquaPEX Tubing
- System of Measurement
- Inch
- Standards
- ASTM E814/ULC S115, ASTM F1960, ASTM F2023, ASTM F876, ASTM F877, CSA B137.5, CSA B214, NSF-14, NSF-61, UL 1821, ULC S101
- Maximum Operating Pressure
- 80 psi
- Features
- Manufactured-Sealed Seams Running the Entire Length of the Pipe for Added Convenience and System Performance
- Color
- Black
- PEX Type
- A
- Application
- Water
- Tube Insulation
- Insulated
- For Fluid Type
- Water
- Tube Insulation Material
- PEX-foam
- Material
- PEX
- Coil Weight
- 22 lb
- Tube Form
- Coil
- Maximum Operating Temperature
- 140 Degrees F
- R Value
- 7.9
Description
Pre-Insulated AquaPEX Tubing, Application Water, Color Black, Inside Diameter 21/32 in, Material PEX, Maximum Operating Pressure 80 psi, Maximum Operating Temperature 140 Degrees F, Outside Diameter 7/8 in, Overall Length 100 ft, PEX Copper Tube Size 3/4 in, PEX Type A, Standards ASTM E814/ULC S115, ASTM F1960, ASTM F2023, ASTM F876, ASTM F877, CSA B137.5, CSA B214, NSF-14, NSF-61, UL 1821, ULC S101
