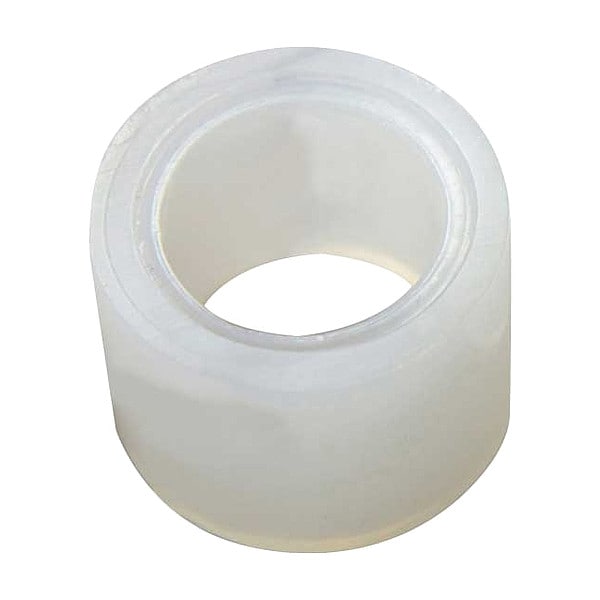

Ring, PEX, Barbed 1/2 in, Barbed
Mfr # Q4690512
Zoro # G912166068
product price: $0.30
/eaKey Features
Specific Fitting Shape
Ring
Standards
ASTM E119/UL 263, ASTM E814/ULC S115, ASTM E84, ASTM F1960, ASTM F2023, ASTM F876, ASTM F877, CSA B137.5, CSA B214, NSF/ANSI 14, NSF/ANSI/CAN 61, ULC S101, ULC S102.2
Finish
Polymer
Barb Size
Standard
Fitting Side A Pipe Size
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Q4690512
Zoro #
G912166068
UPC #
30673372210530
Country of Origin
United States
Dimensions
Barb Size
Standard
Fitting Side A Pipe Size
1/2 in
Fitting Side 1 Tube Inner Diameter
1/2 in
Details
Item
Barbed Fitting Adapter
Specific Fitting Shape
Ring
Standards
ASTM E119/UL 263, ASTM E814/ULC S115, ASTM E84, ASTM F1960, ASTM F2023, ASTM F876, ASTM F877, CSA B137.5, CSA B214, NSF/ANSI 14, NSF/ANSI/CAN 61, ULC S101, ULC S102.2
Finish
Polymer
Maximum Operating Temperature
140 Degrees F
Fitting Material
PEX
Fitting Side A Connection Type
Barbed
Operating Temperature - Minimum
33 Degrees F
PEX Connection Method
Expansion
Operating Pressure - Maximum
80 psi
For Media Type
Potable Water
Fitting Shape
Ring
Operating Temperature - Maximum
140 Degrees F
Fitting Side 1 Connection Type
Barbed
Fitting Side 2 Connection Type
Barbed
Connector Type
Coupling
Description
Barbed Fitting Adapter, Fitting Side A Connection Type Barbed, Fitting Side A Pipe Size 1/2 in, Fitting Material PEX, Specific Fitting Shape Ring, Maximum Operating Temperature 140 Degrees F, Standards ASTM E119/UL 263, ASTM E814/ULC S115, ASTM E84, ASTM F1960, ASTM F2023, ASTM F876, ASTM F877, CSA B137.5, CSA B214, NSF/ANSI 14, NSF/ANSI/CAN 61, ULC S101, ULC S102.2
