Shop U.S. MOTORS

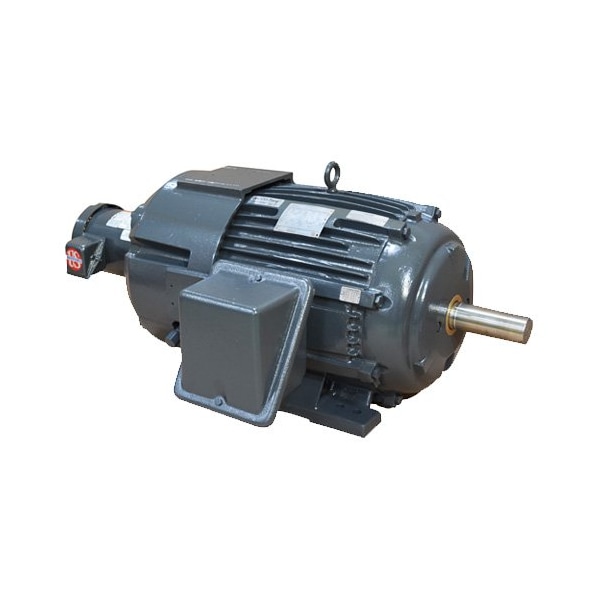

3-Phase Vector Motor, 100 HP, 444 Frame, 230/460V AC Voltage, 1,190 Nameplate RPM

  • Mfr # B100T3B

  • Zoro # G7732064

product price:
$
17,322.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
100
Torque
247 ft-lb
Nameplate RPM
1,190
Speed Range
5,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B100T3B
Zoro #
G7732064
UPC #
786382120337
Country of Origin
Mexico
Item
Vector Motor
Motor Design
Three-Phase
HP
100
Torque
247 ft-lb
Nameplate RPM
1,190
Speed Range
5,000:1
Max. Speed
1,190 RPM
Frame
444
Voltage
230/460V AC
Motor Thermal Protection
T-Stat
No. of Speeds
1
Inverter Rated
Inverter Rated
RPM Range
1,101-1,200
Standards
CE, cURus, NEMA
Hz
60 Hz
Motor Mounting Type
Rigid Base
CC Number
CC030A
Ins. Class
H
Max. Ambient Temp.
104 Degrees F
Phase
Three
Voltage Compatibility
230/460V AC
Motor Shaft Design
Keyed
Motor Service Factor
1
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Full Load Amps
245.0/122.0 A
Motor Application
Cranes and Hoists, Extruders, Machinery, Process Lines, Slitters or Other Inverter Powered, Winders
Nominal Efficiency
95.4 %
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Max. Operating Frequency
60 Hz
Conduit Box Position
F1
Encoder Acceptable
Yes
Duty Cycle
Continuous
Frame Material
Cast Iron
Manufacturers Warranty
3 yr
Full Load Current @ 60 Hz
245.0/122.0 A
Insulation Class
H
Motor Enclosure Type
Totally Enclosed Blower Cooled
Maximum Operating Frequency
60 Hz
Maximum Speed
1,190 RPM
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Product Type
Vector Motor
Frequency
60 Hz
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 100 HP, Nameplate RPM 1,190, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 245.0/122.0 A, 444 Frame, Torque 247 ft-lb, Max. Speed 1,190 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base
