Shop U.S. MOTORS

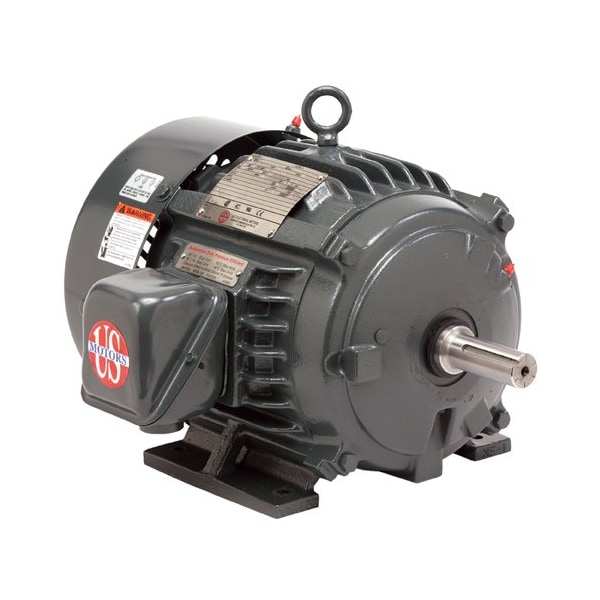

3-Phase Vector Motor, 5 HP, 213 Frame, 230/460V AC Voltage, 1,785 Nameplate RPM

  • Mfr # HN5T2BC

  • Zoro # G7733178

product price:
$
1,278.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
5
Torque
693 ft-lb
Nameplate RPM
1,785
Speed Range
20:01
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HN5T2BC
Zoro #
G7733178
UPC #
786382111076
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 7/8 in
Overall Length
20 in
Shaft Dia.
1 3/8 in
Shaft Length
3 1/8 in
Frame Size
213
Shaft Diameter
1 3/8 in
Wire Rope Length
20 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
5
Torque
693 ft-lb
Nameplate RPM
1,785
Speed Range
20:01
Max. Speed
1,785 RPM
Frame
213
Voltage
230/460V AC
Motor Thermal Protection
T-Stat
Motor Frame Material
Cast Iron
Motor Service Factor
1.15
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
CW/CCW
Phase
Three
Inverter Rated
Inverter Rated
NEMA Design
B
Full Load Amps
15.4/7.7 A
Ins. Class
H
No. of Speeds
1
Hz
60 Hz
Max. Ambient Temp.
104 Degrees F
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Application
Blowers or Other Inverter Powered, Fans, Pumps
Standards
CE, cURus, NEMA
CC Number
CC030A
RPM Range
1,701-1,800
Nominal Efficiency
89.5 %
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Voltage Compatibility
230/460V AC
Conduit Box Position
F1
Inverter Rating
20:1
Encoder Acceptable
Yes
Duty Cycle
Continuous
Max. Operating Frequency
60 Hz
Insulation Class
H
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
15.4/7.7 A
Variable Torque Rating
20:1
Maximum Operating Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Frequency
60 Hz
Shaft Design
Keyed
Maximum Speed
1,785 RPM
Product Type
Vector Motor
Frame Material
Cast Iron
Mounting Position
Horizontal
NEMA Design Class
B
Efficiency Rating
NEMA Premium Efficiency

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 5 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 15.4/7.7 A, 213 Frame, Torque 693 ft-lb, Max. Speed 1,785 RPM, Speed Range 20:01, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
