Shop U.S. MOTORS

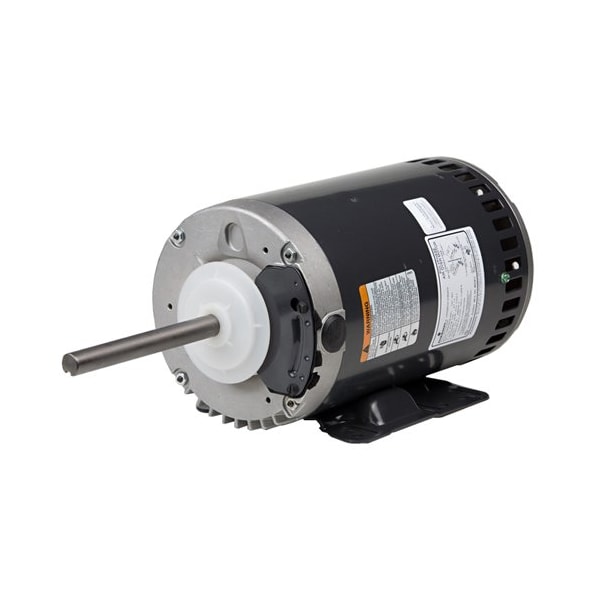

Condenser Fan Motor, 1 hp

  • Mfr # 1833H

  • Zoro # G0919449

product price:
$
512.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1833H
Zoro #
G0919449
UPC #
786382107819
Country of Origin
Mexico
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Rigid Base
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Voltage Compatibility
208V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Motor Shaft Design
Keyed with Single Flat
Application
Commercial Condenser Fans
Standards
CSA Certified, UL Listed
Motor Service Factor
1
Duty
Air Over
Full Load Amps
4.8/2.4 A
Product Type
Condenser Fan Motor
Frame Material
Steel
Ambient Temperature - Maximum
70 Degrees C
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Frequency
60 Hz
Full Load Current @ 60 Hz
4.8/2.4 A
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Number of Speeds
1
Capacitor Required
Capacitor Not Required
Sub Application
Condenser Fan
Shaft Design
Flat, Keyed

Description

Motor,1HP,850RPM,208-230/460V,60HZ, Motor Design 3-Phase, Phase Three, 1 HP, No. of Speeds 1, Voltage 208-230/460V AC, Motor Shaft Rotation CCW, 56 Frame, Motor Enclosure Design Open Dripproof, Rigid Base Motor Mounting Type, Shaft Dia. 5/8 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 850, HVAC/R, 60 Hz, Full Load Amps 4.8/2.4 A, Ins. Class F, Motor Service Factor 1, Overall Length 16 3/4 in
