Shop LEESON

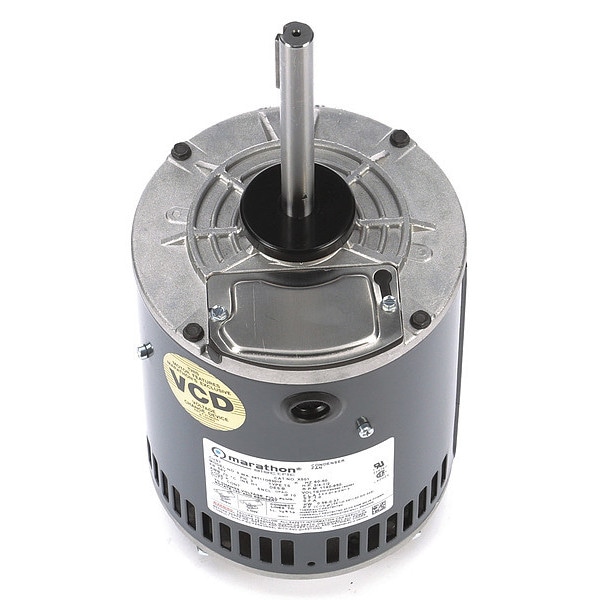

Condenser Fan Motor, 3/4 hp

  • Mfr # 056T11O5301
  • Zoro # G7259870
product price:
$
392.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3/4
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11O5301
Zoro #
G7259870
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Length Less Shaft
9 9/16 in
Overall Length
14 9/16 in
Manufacturers Warranty Length
1 yr
Body Dia.
6 1/2 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56Y
Wire Rope Length
14 9/16 in
Length
14 9/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band/Stud
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC
Motor Shaft Design
Keyed with Single Flat
Standards
CSA Certified (LR2025), UL Recognized
Motor Bearings
Ball
Motor Service Factor
1
Nominal Efficiency
74 %
Features
(4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes
Hz
50/60 Hz
Capacitor Required
Capacitor Not Required
Duty
Continuous
Full Load Amps
3.2-3.2/1.6 A
Ins. Class
B
Application
Condenser Fan
Usable @ 208V
Usable at 208V
Conduit Box Position
F1
Conduit Box Location
Exterior
Full Load Amps @ 50Hz
3.2-3.2/1.6 A
Voltage @ 50Hz
200-230/460V AC
Motor Frame Material
Steel
Usable @ 200V
Usable at 200V
Removable Base
No
HP @ 50Hz
3/4
Weight
25 lb
Duty Cycle
Continuous
Service Factor @ 50Hz
1
RPM @ 50Hz
1,140
Output Watts
560 W
Product Type
Condenser Fan Motor
Nameplate RPM @ 50 Hz
1,140 RPM
Motor Enclosure Type
Open Air Over
Full Load Current @ 60 Hz
3.2-3.2/1.6 A
Nameplate Horsepower @ 50 Hz
3/4 hp
Nameplate Voltage @ 50 Hz
200-230/460V AC
Ambient Temperature - Maximum
70 Degrees C
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Wattage
560 W
Manufacturers Warranty
1 yr
Mounting Position
Horizontal/Vertical Shaft Up
Nameplate Service Factor @ 50 Hz
1
Shaft Design
Keyed
Drive Type
Direct Drive
Full Load Current @ 50 Hz
3.2-3.2/1.6 A
Frequency
60/50 Hz
Sub Application
Condenser Fan
Insulation Class
B
Bearing Type
Ball
Frame Material
Steel

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 3.2-3.2/1.6 A Full Load Amps, 56Y Frame, Output Watts 560 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
