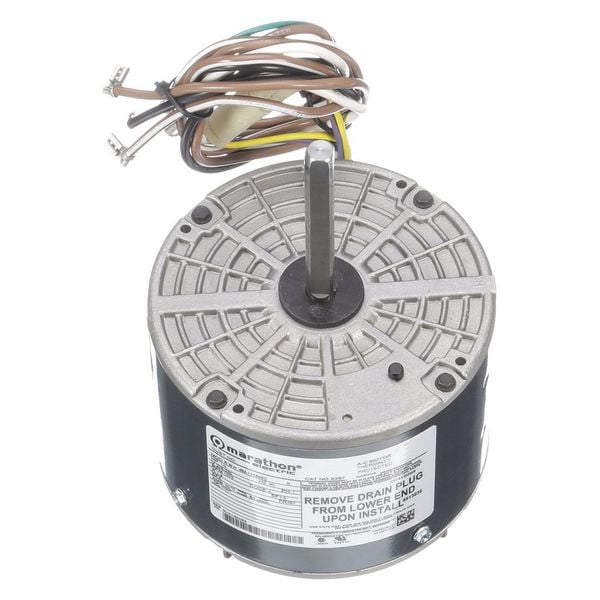

Condenser Fan Motor, 1/3 hp

  • Mfr # 5455
  • Zoro # G1942566
product price:
$
155.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,075
Voltage
208V AC to 230V AC
Frame
48
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5455
Zoro #
G1942566
UPC #
786382005641
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 3/4 in
Bolt Circle Dia.
5 1/8 in
Length Less Shaft
4 5/8 in
Body Dia.
5.6 in
Overall Length
8 5/16 in
Manufacturers Warranty Length
1 yr
Stud Size
#8-32
Mounting Stud Length
3/8 in
Body Diameter
5.6 in
Frame Size
48YZ
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
8 5/16 in
Length
8 5/16 in

Details

HP
1/3
Nameplate RPM
1,075
Voltage
208V AC to 230V AC
Frame
48
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Full Load Amps
1.9 A
Motor Shaft Design
Keyed
Max. Ambient Temp.
60 Degrees C
Capacitor Required
Capacitor Not Included
Motor Mounting Type
Band/Stud
Ins. Class
B
Motor Mounting Position
Horizontal
Application
Fan/Blower
Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Motor Bearings
Sleeve
No. of Speeds
1
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Service Factor
1
Phase
Single
Motor Thermal Protection
Auto
Motor Sub Application
Condenser Fan
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Application
HVAC/R
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Number of Shafts
1
Extended Thru-Bolts
Yes
OEM Replacement Brand
Rheem
Nominal Efficiency
60.9 %
Weight
13.4 lb
Standards
CE certified, CSA Group, ISO9001:2015 Certified, UL LLC
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Mounting Position
Horizontal
Ambient Temperature - Maximum
60 Degrees C
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1
Compatible Brand
Rheem
Product Type
Condenser Fan Motor
Number of Speeds
1
Insulation Class
B
Full Load Current @ 60 Hz
1.9 A
Motor Enclosure Type
Totally Enclosed Air-Over
Frame Material
Steel
Bearing Type
Sleeve
Sub Application
Condenser Fan
Shaft Design
Keyed
Duty
Continuous

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.9 A, 48YZ Frame, OEM Replacement Brand Rheem, Replacement For Not Applicable, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW
