Shop U.S. MOTORS

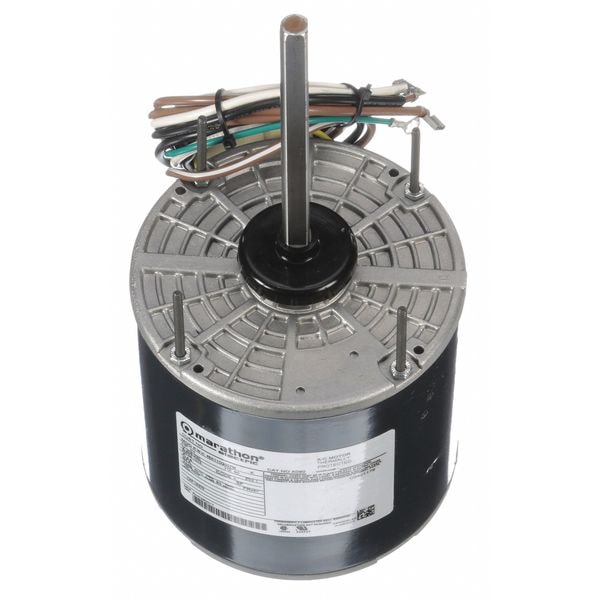

Condenser Fan Motor, 3/4 hp

  • Mfr # 8665
  • Zoro # G0215600
product price:
$
214.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8665
Zoro #
G0215600
UPC #
786382007294
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Bolt Circle Dia.
5 1/8 in
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
6 3/8 in
Overall Length
12 3/8 in
Shaft Length
6 in
Lead Length
30 in
Body Dia.
5 5/8 in
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/4 in
Frame Size
48Y
Wire Rope Length
12 3/8 in
Length
12 3/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Duty
Continuous
Standards
CSA (156060), UL (E22922)
Item
Condenser Fan Motor
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Mounting Position
All Angle
Ring to Ring Center
5 13/16 in
Motor Service Factor
1
Motor Bearings
Ball
Full Load Amps
4.4 A
Stud Quantity
4
Ins. Class
B
Nameplate RPM
1,075
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Nominal Efficiency
73.9 %
Motor Sub Application
Condenser Fan
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Capacitor Required
Capacitor Not Included
Motor Shaft Design
Double-Flat
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Mounting Position
All Angle
Bearing Type
Ball
Drive Type
Direct Drive
Shaft Design
Double Flat
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Full Load Current @ 60 Hz
4.4 A
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 230V AC, 4.4 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
