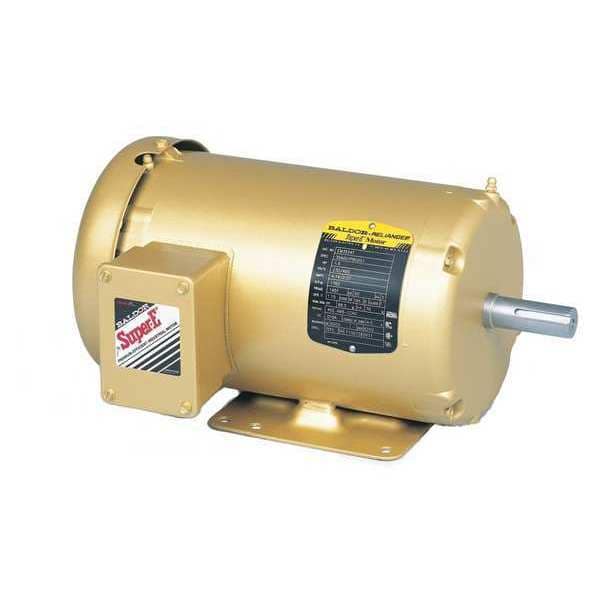

Baldor-Reliance Three-Phase AC Induction Motor, 10 HP, 215T Frame, 230V AC, 460V AC Voltage, 1,770 Nameplate RPM EM3714T - main

Three-Phase AC Induction Motor, 10 HP, 215T Frame, 230V AC, 460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # EM3714T

  • Zoro # G7068111

product price:  $1,641.99
/ea
Item requires special delivery charges. A $105.00 per item surcharge will be applied.

Key Features

HP
10
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.5/25/27 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM3714T
Zoro #
G7068111
UPC #
781568139073
Country of Origin
United States

Dimensions

Length Less Shaft
17 1/8 in
Overall Length
20 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in

Details

Item
AC Induction Motor
HP
10
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.5/25/27 A
Frame
215T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
91.7 %
Standards
CSA EEV, NEMA Premium, RoHS Compliant, UR
CC Number
CC010A
NEMA Design
A
Inverter Rated
Yes
Motor Thermal Protection
None
Part Winding Start Capable
No
RPM @ 50Hz
1,770
Usable @ 208V
Yes
Duty Cycle
Continuous
Full Load Amps @ 50Hz
29.8/14.9 A
HP @ 50Hz
10 hp
Voltage @ 50Hz
190/380 V
Removable Base
Regreasable

Description

The BALDOR-RELIANCE - EM3714T is a 3-Phase AC Induction Motor designed for general purpose industrial applications. This motor operates by converting electrical energy into mechanical energy through electromagnetic induction, making it an essential component in power transmission and pneumatics systems where rotational motion is required.

Key Features of the BALDOR-RELIANCE - EM3714T 3-Phase AC Induction Motor:

  • CC Number: The unique identifier assigned by EASA, classifying and tracking this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: Designed for continuous operation within specified conditions.
  • Frame: Conforms to standard specifications for compatibility with a size of 215T.
  • Full Load Amps: Rated to draw a maximum current of 12.5/25/27 A under full load conditions.
  • Horsepower (HP): Has a rated power output of 10 HP under specified conditions.
  • Inverter Rated: Compatible with variable frequency drives as per the product specifications
  • Max. Ambient Temp.: Specified for operation up to an ambient temperature limit of 40 Degrees C
  • Nominal Efficiency: Under standard testing conditions, has demonstrated an efficiency rate of approximately 91.7%
