Shop U.S. MOTORS

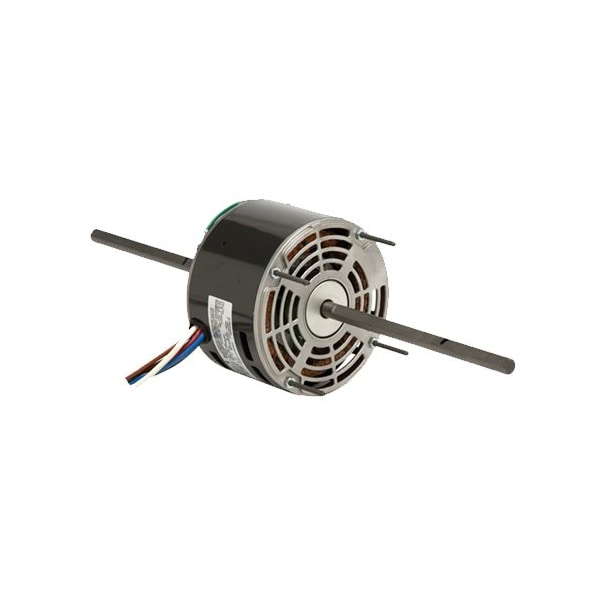

Direct Drive Blower Motor, 1/3 hp

  • Mfr # NAL1036

  • Zoro # G0915599

product price:
$
207.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,101-1,200
No. of Speeds
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
NAL1036
Zoro #
G0915599
UPC #
786382114466
Country of Origin
Mexico
Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,101-1,200
No. of Speeds
3
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Hub/Stud
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,075
Motor Application
Washdown
Motor Sub Application
Direct Drive Fan/Blower
Hz
60/50 Hz
Ins. Class
B
Application
Washdown
Motor Service Factor
7.15
Motor Bearings
Ball
Full Load Amps
7.15 A
Duty
Continuous
Voltage @ 50Hz
115
RPM @ 50Hz
1,075 rpm
Full Load Amps @ 50Hz
7.15 A
Blower Stages
2
Service Factor @ 50Hz
1
Max. Amps
14.85 A
Watts
300 W
Weight
14.94 lb
Duty Cycle
Continuous
Nameplate Voltage @ 50 Hz
115V AC
Capacitor Required
Capacitor Not Included
Full Load Current @ 60 Hz
7.15 A
Frequency
60/50 Hz
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Sub Application
General Purpose
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 50 Hz
1
Full Load Current @ 50 Hz
7.2 A
Nameplate RPM @ 50 Hz
1,075 RPM
Insulation Class
B
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
3

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 7.15 A Full Load Amps, 48Y Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Hub, Stud, Motor Frame Material Steel, Shaft Length 6 1/4 in, Shaft Dia. 1/2 in
