Shop U.S. MOTORS

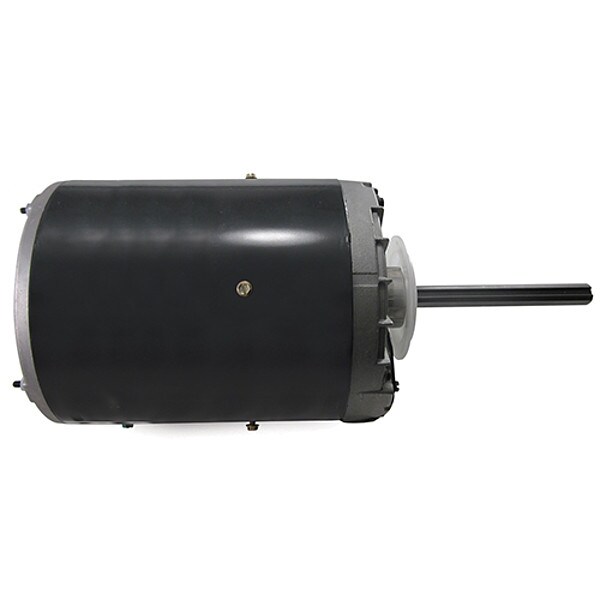

Direct Drive Blower Motor, 3/4 hp

  • Mfr # 3076

  • Zoro # G0920523

product price:
$
424.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3/4
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3076
Zoro #
G0920523
UPC #
786382117030
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 in
Body Dia.
5 1/2 in
Overall Length
11 13/16 in
Length Less Shaft
8 13/16 in
Wire Rope Length
11 13/16 in
Body Diameter
5.5 in
Frame Size
48Y
Shaft Diameter
1/2 in
Length
11 13/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Band
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Voltage Compatibility
208V AC, 230V AC
Duty
Open and Totally Enclosed Air Over
Motor Service Factor
1.35
Application
Commercial Condenser Fans
Ins. Class
B
Full Load Amps
3.6 A
Hz
60 Hz
Nameplate Service Factor @ 60 Hz
1.35
Ambient Temperature - Maximum
60 Degrees C
Frequency
60 Hz
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Drive Type
Direct Drive
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Capacitor Required
Capacitor Not Required
Insulation Class
B
Full Load Current @ 60 Hz
3.6 A
Frame Material
Steel

Description

Motor,3/4HP,1140RPM,208-230V,60HZ,48Y, Motor Design 3-Phase, Phase Three, 3/4 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CCW, 48 Frame, Motor Enclosure Design Open Dripproof, Band Motor Mounting Type, Shaft Dia. 1/2 in, Shaft Length 3 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,140, HVAC/R, 60 Hz, Full Load Amps 3.6 A, Ins. Class B, Motor Service Factor 1.35, Overall Length 11 13/16 in
