Shop U.S. MOTORS

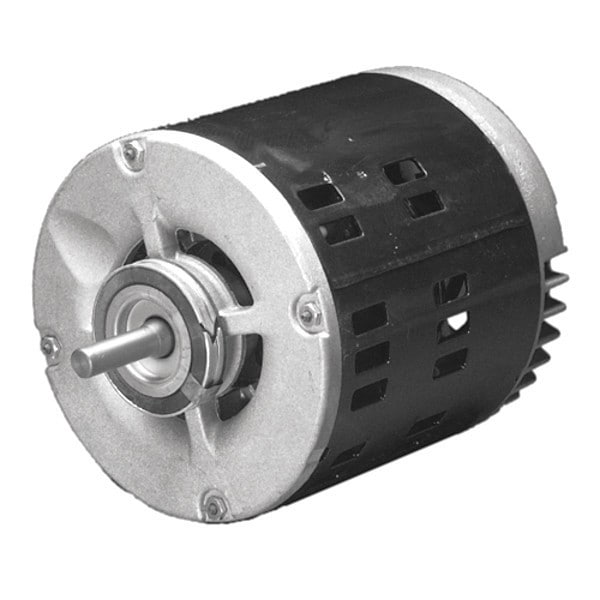

Evaporative Cooler Motor, 3/4 hp

  • Mfr # 6769

  • Zoro # G8681489

product price:  $178.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
3/4
Full Load Amps
10.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6769
Zoro #
G8681489
UPC #
786382006389
Country of Origin
Mexico

Dimensions

Overall Length
9 3/8 in
Shaft Dia.
1/2 in
Length Less Shaft
7 13/16 in
Shaft Length
1 5/8 in
Ring Dia.
2 1/2 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
6 5/16 in
Frame Size
56Z
Shaft Diameter
1/2 in
Body Diameter
6.3 in
Resilient Ring Diameter
2 1/2 in
Wire Rope Length
9 3/8 in

Details

Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
3/4
Full Load Amps
10.7 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
1
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CWSE
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Ring
Standards
CSA (156060), UL (E22922)
Ring to Ring Center
7 7/16 in
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Sub Application
Evaporative Cooler
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Product Type
Evaporative Cooler Motor
Ambient Temperature - Maximum
40 Degrees C
Capacitor Required
Capacitor Not Required
Full Load Current @ 60 Hz
10.7 A
Insulation Class
B
Frame Material
Steel

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 10.7 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring
