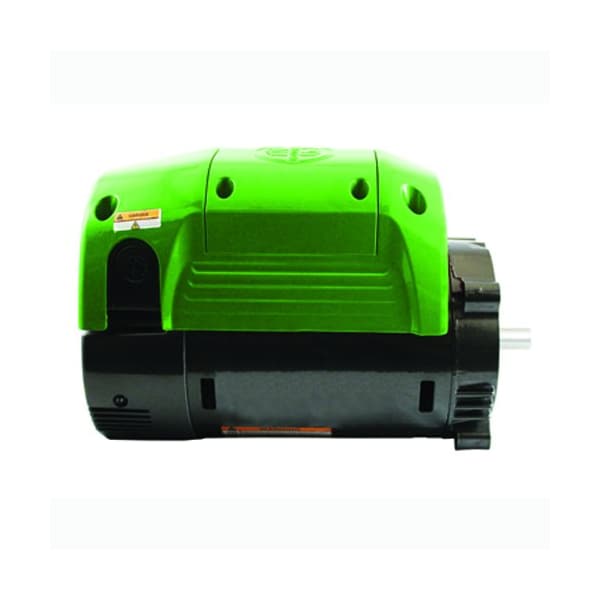

Fan and Blower Motor, 56C, 1/2 hp
Mfr # EC8300
Zoro # G0914731
product price:Â $511.99
/ea
Free Shipping & Returns
Key Features
Length Less Shaft
10 7/8 in
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Motor Enclosure Design
Open Dripproof
Voltage
115/208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EC8300
- Zoro #
- G0914731
- UPC #
- 786382117757
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 10 7/8 in
- Shaft Length
- 1 7/8 in
- Shaft Dia.
- 5/8 in
- Overall Length
- 12 13/16 in
- Height
- 8 1/4 in
- Bolt Circle Dia.
- 5 7/8 in
- Frame Size
- 56C
- Wire Rope Length
- 12 13/16 in
- Bolt Circle Diameter
- 5 7/8 in
Description
Motor, Single Phase, Motor Design Brushless Permanent, 1/2 hp HP, Nameplate RPM 3,560, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.1, 6.5, Motor Thermal Protection None, 60/50 Hz, Ins. Class B, Motor Shaft Rotation CCW, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face
